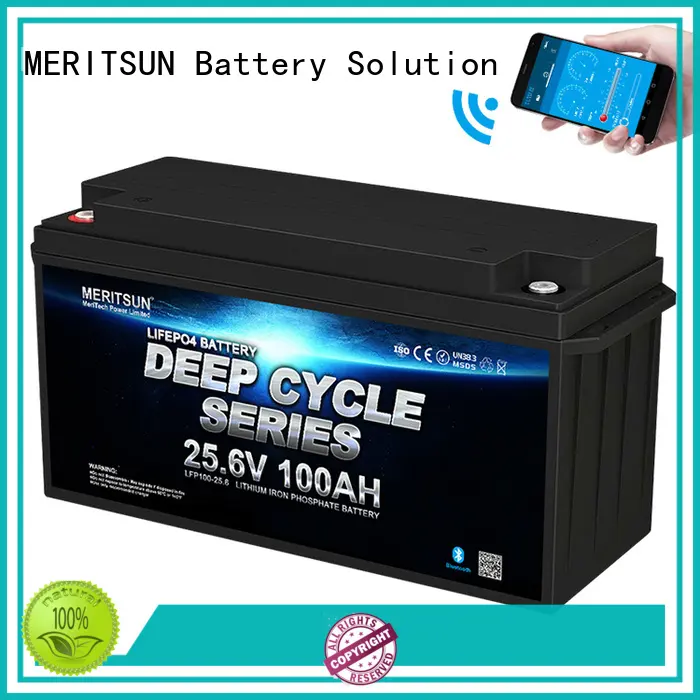

MERITSUN lithium battery with bluetooth suppliers for solar street light
1. lithium battery with bluetooth excels among similar products with its 24 volt lithium battery pack design.
2. The product is in high demand among customers in the industry for its great benefits.
3. The product is carefully checked to ensure the maximized durability.
4. This product requires very few workers, which helps to reduce labor costs. This will ultimately help manufacturers gain a competitive advantage.
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 100Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 49A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 8S10P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 522*240*224mm | |
Weight (lbs./kg.) | 30.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd.'s famous brand MERITSUN primarily has high status for its Bluetooth Battery.
2. Possessed with advanced technologies, we have state-of-the-art production facilities and lines. These lines include raw materials treating line, assembly line, quality inspection line, and package line. The clear division of labor help stabilize production and guarantee excellent products.
3. The enterprise culture that MERITSUN sticks to is the drive to motivate staff to work harder. Inquire! Many customers are satisfied with the professional service provided by MERITSUN. Inquire!
