MERITSUN lithium battery price with good price for villa
1. MERITSUN lithium ion battery cost is designed using the latest design concept and manufactured from quality raw materials sourced from reliable suppliers. Strong reliability is one of the features of the product
2. The product is easy to care for. People simply need to wipe the dust and stains on its surface with a slightly damp cloth. Before shipment, the product will undergo 45 kinds of detailed tests
3. This product quality is guaranteed, and has a number of international certification, such as ISO certification. The product is produced under the principle of environmental protection
4. The product meets international standards in all aspects, such as performance, durability, availability and more. The charge rate of the product is strong, shortening the charge time efficiently
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >4000 cycles | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |

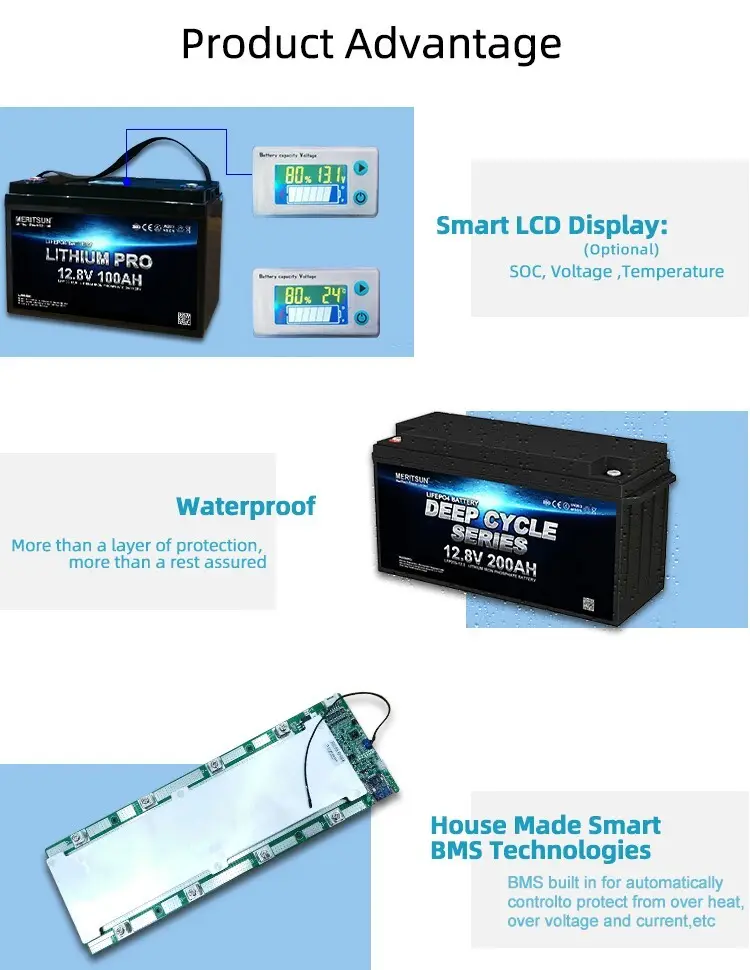

LCD (optional) | Yes |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MERITSUN is currently one of the very best in the lithium battery price industry.
2. Our factory boasts a high-efficient production line that allows for material selection, machining, and inspection of finished products. This line can operate 24 hours a day to guarantee the output.
3. We wish to take hand in hand with customers to make contribution for lifepo4 battery 12v 100ah industry. Inquiry!
