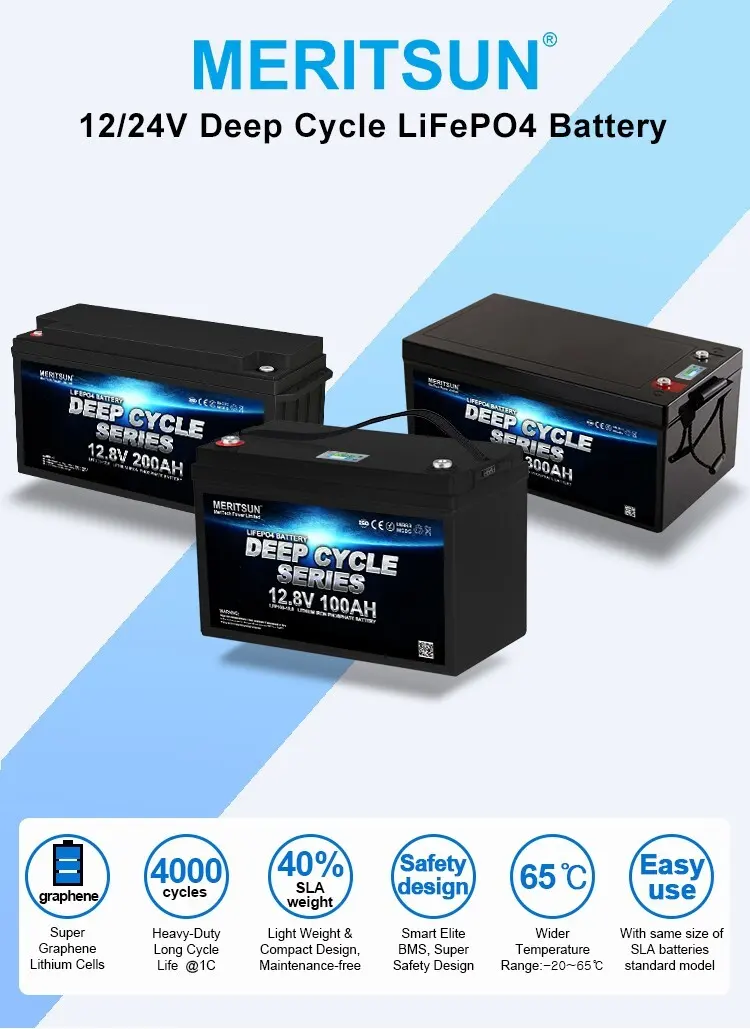

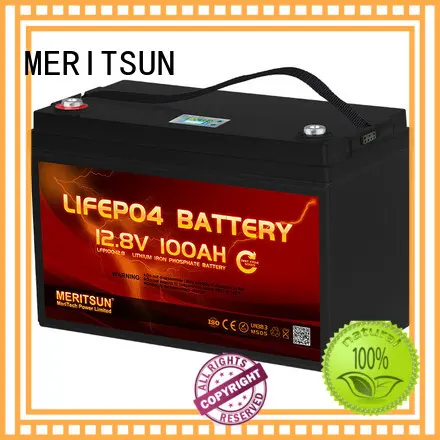

MERITSUN lithium battery manufacturers wholesale for house
1. MERITSUN lifepo4 battery price is produced under the standardized and scientific production process. The production of the product is constantly monitored for 24 hours. It is of extremely low self-discharge rate and can be left unused for a longer time

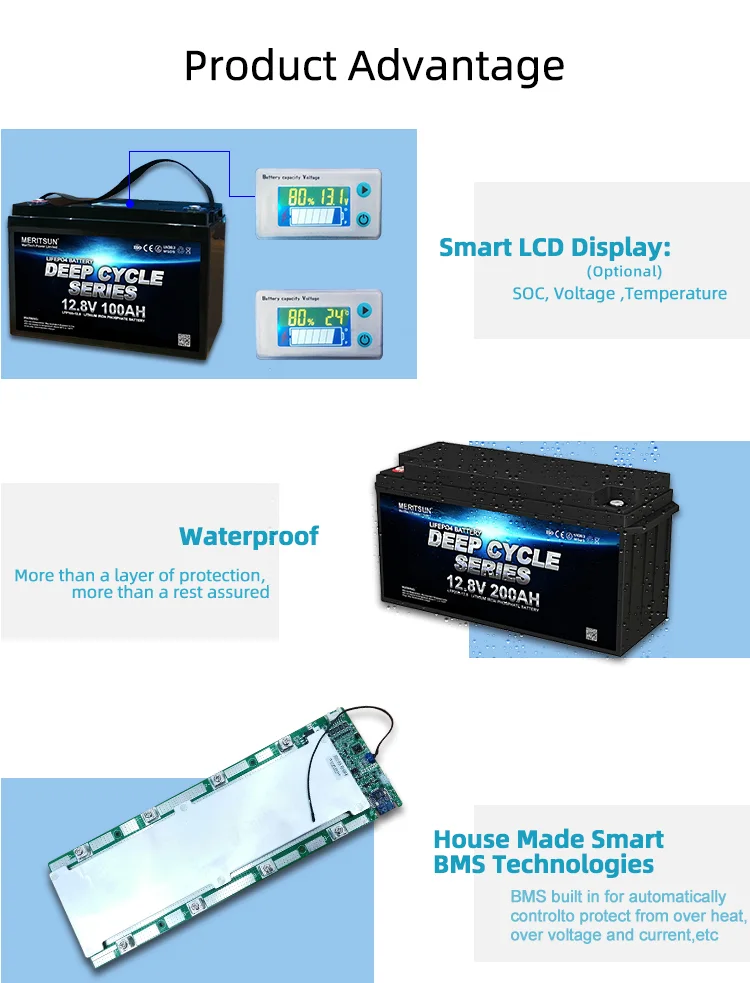

2. MERITSUN has great fame for its high quality lithium battery manufacturers . The product is designed with a protection circuit which can totally ensure the safety of users
3. The product is less likely to leak. It is finely sealed with good materials which effectively hide its electrolyte inside. The product comes with OEM and ODM availability
4. This product features a large energy storage capacity. The materials used in the battery cells have a huge reversible capacity. It is produced in strict accordance with the UL standard
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |

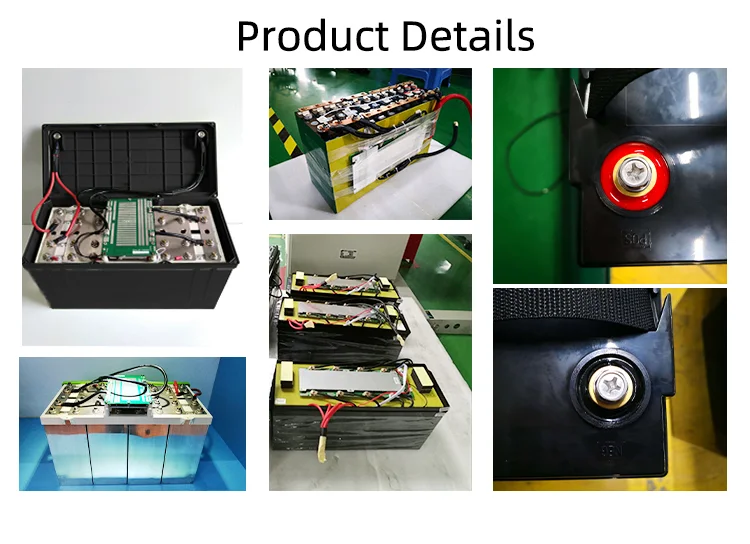

Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
LCD (optional) | Yes |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features

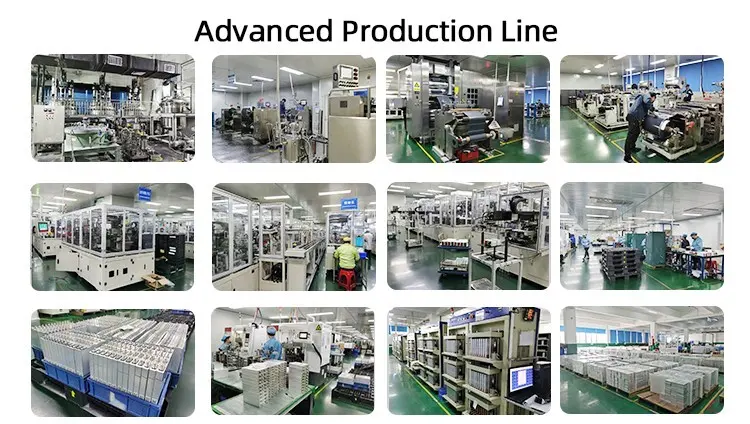

1. MeriTech Power Co.,Ltd. has been specializing in the manufacture of lithium battery manufacturers for many years. We have adopted the latest fabrication and processing technology to adapt to changing market conditions and customer demands.
2. Our production capacity occupies steadily in the forefront of the lifepo4 battery pack industry.
3. We do things efficiently and responsibly in terms of the environment, people and the economy. The three dimensions are critical throughout our value chain, from procurement to end product.
