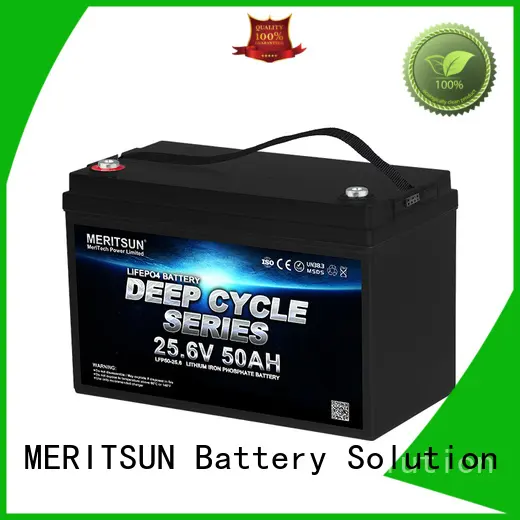

MERITSUN lightweight lithium battery manufacturers series for house
-
v s
1. All primary frame components of MERITSUN lifepo4 battery wholesale are manufactured by CNC machine. This advanced production methods offer a degree of precision manufacturing to meet the standards in the tent industry.
2. To assure its quality, the product is manufactured under the supervision of our experienced QA team.
3. In addition to the quality in line with industry standards, the product life longer than other products.
4. This product plays an important role in the professional life of space designers. They use it as the main tool to give different looks to different spaces.
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 50Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 45A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 8S2P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. By virtue of strong developing and manufacturing capability of lifepo4 battery wholesale , MeriTech Power Co.,Ltd. ranks among top competitors in domestic markets.
2. Our factory is placed in a satisfactory location. It is easily accessible to the airports and ports within an hour. This helps us minimize production and distribution costs for our company.
3. We have established four key areas at the center of sustainability through our efforts: Employees, Production, Products and Social and Economic Commitment. MeriTech Power Co.,Ltd. provides professional service for every customer. Contact us! We will continue to work on gaining a greater understanding of global users’ expectations for this product and provide better service for customers. Contact us! We commit to establish and maintain an effective environmental management system that extends further than just meeting the stated environmental legality. We continue to innovate to improve our footprint in production.
