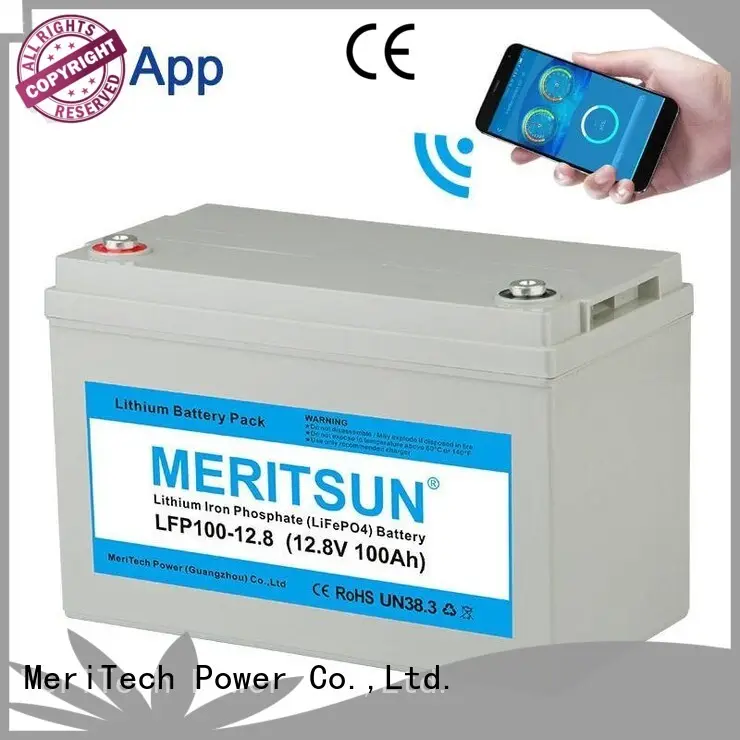

MERITSUN lightweight 12v lifepo4 lithium battery for villa
1. In MeriTech Power Co.,Ltd., you can have multiple choices for shapes of lithium iron battery . The charge rate of the product is strong, shortening the charge time efficiently
2. The product is lightweight, hence, people can carry it around for emergency use when they go outside for travel or camping. It is of extremely low self-discharge rate and can be left unused for a longer time
3. The product's design is simple, intuitive and unique enough to stand out from the competition on the shelves. It is produced in strict accordance with the UL standard
4. This may be the best option for allergy sufferers. Allergens such as dust mites and pollen cannot enter densely weaved strands. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >2000 cycles @1C 100%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
The Product Feature, please refer to:
OBM / OEM / ODM Service
The OBM / OEM / ODM Service with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to APP Bluetooth Control 12V 100Ah Solar Li-ion Lipo LiFePO4 Lithium Polymer Battery Pack
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is regarded as a specialist in the lithium iron battery industry.
2. 12v lifepo4 lithium battery production is carried out in a scientific management mode.
3. That profession creates excellence is the belief MERITSUN holds. Call!
