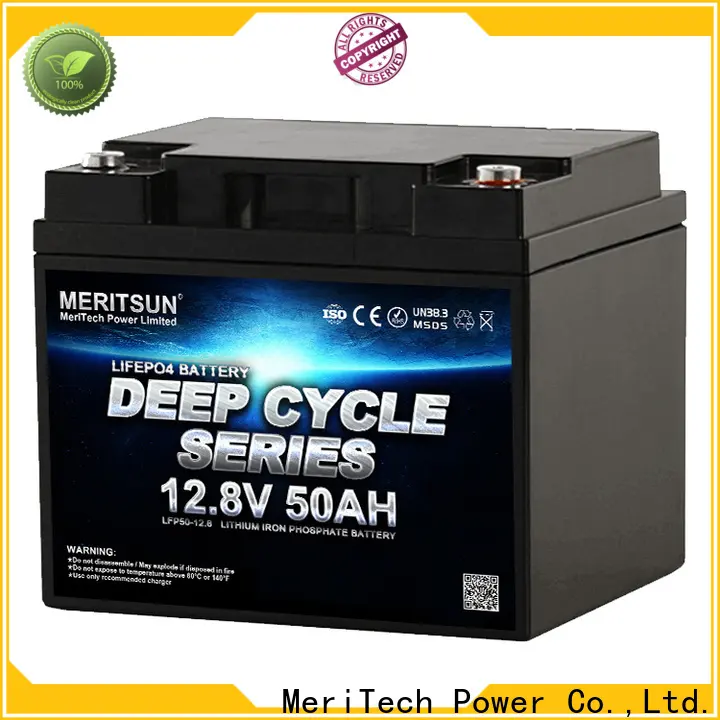

MERITSUN lifepo4 battery 12v 200ah series for villa
Model:
12v50ahLithiumBattery
Rated Voltage (V):
12V
Rated Capacity (Ah):
100AH, 200AH, 300AH
Supply Ability:
5000 Pieces per Month
MOQ:
1
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
196*165*174
Approx Weight (Kg):
6.5Kg
Terminal Type:
Lifepo4
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. Inspection of MERITSUN 24 volt lifepo4 battery pack will be carried out by the QC team. Its appearance will be inspected to make sure the identification of polarity is correct and the battery lead is finely handled. It is very easy to use
2. MeriTech Power Co.,Ltd. takes the lead in lifepo4 battery 12v 200ah industry. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
3. This product has high resistance to bacteria. Thanks to its clear surface, it will not allow any dirt or spills to sit and serve as a breeding site for germs. It is packed with high-quality and sturdy packages
4. The product can stand up strong disinfectants. Its specially coated metal materials make it effectively withstand disinfection environments. The product is designed with a protection circuit which can totally ensure the safety of users
5. The product is distinguished by high reliability. It has passed the stability test which is intended to check whether it's easy to fall or tip. The product is characterized by thermal performance
Company Features
1. MeriTech Power Co.,Ltd., with many years of design and manufacturing experience, is one of the leading professional suppliers of 24 volt lifepo4 battery pack . We put great emphasis on technology of lifepo4 battery 12v 200ah .
2. Our lithium iron phosphate battery production equipment possesses many innovative features created and designed by us.
3. All our lifepo4 battery 12v 100ah have conducted strict tests. The application of culture of lifepo4 battery pack 12v is a joint for the development of MERITSUN. Check it!
1. Inspection of MERITSUN 24 volt lifepo4 battery pack will be carried out by the QC team. Its appearance will be inspected to make sure the identification of polarity is correct and the battery lead is finely handled. It is very easy to use
2. MeriTech Power Co.,Ltd. takes the lead in lifepo4 battery 12v 200ah industry. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
3. This product has high resistance to bacteria. Thanks to its clear surface, it will not allow any dirt or spills to sit and serve as a breeding site for germs. It is packed with high-quality and sturdy packages
4. The product can stand up strong disinfectants. Its specially coated metal materials make it effectively withstand disinfection environments. The product is designed with a protection circuit which can totally ensure the safety of users
5. The product is distinguished by high reliability. It has passed the stability test which is intended to check whether it's easy to fall or tip. The product is characterized by thermal performance
Electrica Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 50Ah | |
| Energy | 640Wh | |
| Internal Resistance | ≤40mΩ | |
| Cycle Life | ≥4000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100% @0.5C | |
| Efficiency of Discharge | 96~99% @1C | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
| Charger Current | 50A | |
| Max. Charge Current | 50A | |
| Charge Cut-off Voltage | 14.6V±0.2V | |
| Standard Discharge | Continuous Current | |
| Max. Pulse Current | 170A/3s | |
| Discharge Cut-off Voltage | 8v | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 55 ℃ (-4F to 140F) @55±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
| Mechanical | Cell & Method | 4S53P |
| Plastic Case | ABS | |
| Dimensions (in./mm.) | 196*165*174mm (Customized) | |
| Weight (lbs./kg.) | 6.8Kg | |
| Terminal | T11 | |
| Protocol (optional) | SMBus/RS485/RS232 | |
| SOC (optional) | LED |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd., with many years of design and manufacturing experience, is one of the leading professional suppliers of 24 volt lifepo4 battery pack . We put great emphasis on technology of lifepo4 battery 12v 200ah .
2. Our lithium iron phosphate battery production equipment possesses many innovative features created and designed by us.
3. All our lifepo4 battery 12v 100ah have conducted strict tests. The application of culture of lifepo4 battery pack 12v is a joint for the development of MERITSUN. Check it!
