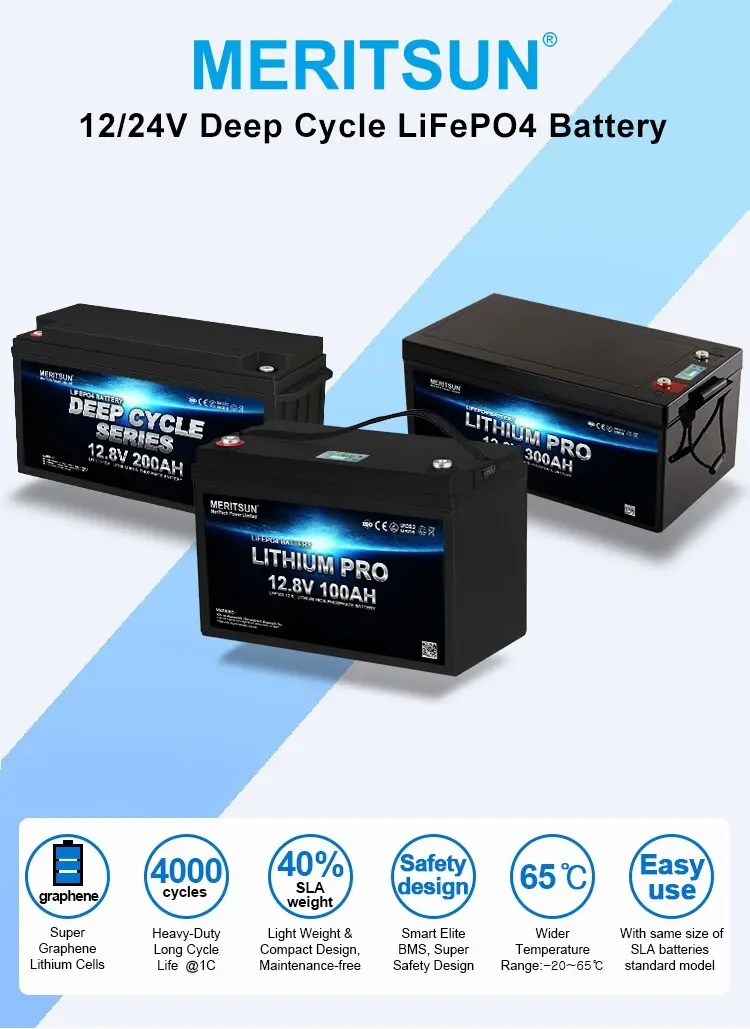

MERITSUN lifepo4 battery 12v 200ah series for home use
1. MERITSUN lifepo4 batteries for sale meets relevant domestic standards. It has passed GB18584-2001 standard for interior decoration materials and QB/T1951-94 for furniture quality. Made of reliable chemical substances, the product is of superior safety
2. For those people who are vulnerable to the ankle sprain, hallux valgus, or tibialis posticus tendinitis, this product is a preferred choice for them as it offers essential cushion. It is produced in strict accordance with the UL standard
3. Made from superior materials, lifepo4 battery 12v 200ah has the advantages of large capacity, high power, low self-discharge rate, good temperature resistance, etc. It can not only support the equipment for a long time, but also can be recycled many times.
4. lifepo4 battery 12v 200ah is manufactured based on excellent materials and advanced technology. It has superior corrosion resistance and excellent electrical conductivity, which not only enhances cycle durability, but also greatly reduces power consumption.
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤180mΩ | |
Cycle Life | >4000 cycles | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 60A | |
Max. Charge Current | 80A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 60A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 8V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 4S20P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*170*245mm | |
Weight (lbs./kg.) | 25kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MERITSUN gains its rising popularity for its lifepo4 battery 12v 200ah .
2. We insist on integrity. We ensure that the principles of integrity, honesty, quality, and fairness are integrated into our business practices around the world. Inquire online!
