Application Scope
The battery energy storage system of Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. is applicable in the following scenes.In addition to providing high-quality products, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. also provides effective solutions based on the actual conditions and the needs of different customers.
Company Advantages1. MERITSUN low temp lithium battery is manufactured strictly complying with relevant standards. It has been tested under IEC, JISC, RoHS, CE, etc, and the testing result shows that its electrical property and safety performance meet the regulations.
2. The product has the advantages of fire resistance. It is able to withstand against the sudden fire or prevent or retard the passage of excessive heat.
3. The product is widely used and enjoys great popularity among modern people. It plays an important role in our life when we in need of power source.
4. The product is used in many applications for its quick discharging ability. It is especially useful when there is in need of power source temporarily.

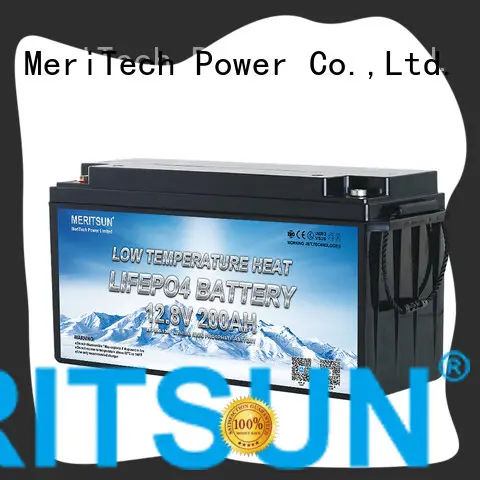

![MERITSUN latest low temperature lithium ion battery factory for house 12]()
Electrica
Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah |
Energy | 2560Wh |
Internal Resistance | ≤20mΩ |
Cycle Life | ≥4000 cycles @1C 100%DOD |
Months Self Discharge | <3% |
Efficiency of Charge | 100% @0.5C |
Efficiency of Discharge | 96~99% @1C |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
Charger Current | 80A |
Max. Charge Current | 100A |
Charge Cut-off Voltage | 14.6±0.2V |
Standard Discharge | Continuous Current | 100A |
Max. Pulse Current | 300A(<10s) |
Discharge Cut-off Voltage | 10.5V |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
Water Dust Resistance | IP56 |
Mechanical | Cell & Method | 26650 4S36P |
Plastic Case | ABS |
Dimensions (in./mm.) | 483*170*241mm Customized |
Weight (lbs./kg.) | 25kg |
Terminal | T11 |
Protocol (optional) | SMBus/RS485/RS232 |
SOC (optional) | Bluetooth |
![MERITSUN latest low temperature lithium ion battery factory for house 13]()
![MERITSUN latest low temperature lithium ion battery factory for house 14]()
![MERITSUN latest low temperature lithium ion battery factory for house 15]()
![MERITSUN latest low temperature lithium ion battery factory for house 16]()
![MERITSUN latest low temperature lithium ion battery factory for house 17]()
![MERITSUN latest low temperature lithium ion battery factory for house 18]()
![MERITSUN latest low temperature lithium ion battery factory for house 19]()
![MERITSUN latest low temperature lithium ion battery factory for house 20]()
Company Features1. As a low temperature lithium ion battery globally competitive producer, MeriTech Power Co.,Ltd. is accelerating its own extensive improvement.
2. The factory is reasonably built in line with the requirements for standard workshop. We have reasonable arranged production lines and newly advanced facilities have been brought in to increase productivity.
3. The vision of our company is to contribute to the construction of a better world as a global industry-leading supplier. We endorse low carbon development. We will shape low-carbon culture internally and image as a leading provider of low-carbon solutions externally. We are determined to achieve energy-saving and the environmentally-friendly manufacturing way in the future. We will upgrade the old waste treating equipment with more effective ones, and make full use of every kind of energy resources to reduce energy waste.
