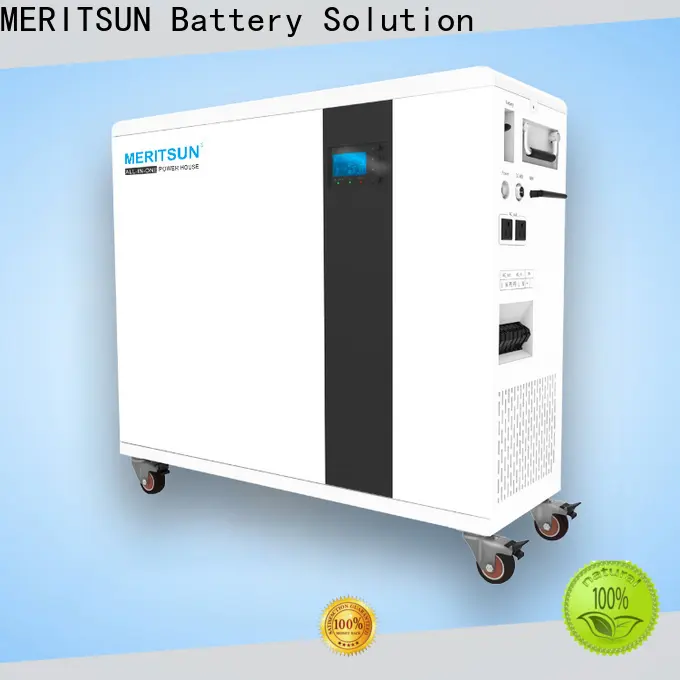

Company Advantages1. home battery backup is exquisite in workmanship and reasonable in structure. Besides, it has a terminal protective cap to effectively protect the terminal and reduce the damage rate of the terminal.
2. MeriTech Power Co.,Ltd. provides customers with sales, support, design, processing, production, and other one-stop service. It can be widely applied in diverse areas ranging from small appliances and IT devices
3. Product quality has been recognized by international authoritative testing organizations. The weight of the product is about 40% of the weight of a comparable lead-acid battery
![MERITSUN home battery backup wholesale for TV2 11]()
Feature
1.Built in Inverter and Smart BMS,Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
![MERITSUN home battery backup wholesale for TV2 12]()
| Models | Nominal Voltage | 48V |
| Battery |
|
| Nominal Voltage [V] | 51.2 |
| Voltage Range [V] | 44.8~57.6 |
| Capacity | 3KWH | 5KWH |
| Max.discharge rate | 0.7C | 0.7C |
| Max.charge rate | 0.5C | 0.5C |
| Battery Type | LiFePO Battery |
AC Output
|
| Rated Power | 3000VA | 5000VA |
| Overload Capacity | 120% (5s) |
| 200% (100ms) |
| Output Voltage | 230Vac±2% |
| Output Current | 13.7 A | 22 A |
| Rated Frequency | 50/60Hz |
| VTHD | 3% |
| Transfer Time | ＜10ms |
| Output Wave | Pure Sine Wave |
| Output Type | Multi-purpose Socket×2 |
| AC Input Voltage Range | 170~280Vac |
| Max AC Charge Current(Battery) | 40A | 60A |
PV Input
|
| Max. PV Power(Recommended) | 3000w | 4000w |
| Max. PV Voltage | 145V |
| MPPT Range | 60V~115V |
| Max PV Charge Current(Battery) | 60A | 80A |
| Operating Conditions |
|
| Operating Temperature | 0~55℃ |
| Storage Temperature | -15℃~60℃ |
| Humidity | 5%~95% |
| Cooling Strategy | Fan |
| Weight [kg] | 42 | 60 |
| Dimension [W x H x D, mm] | 700*580*230 | 700*580*230 |
| Enclosure Protection Rating | IP31 |
| Communication | Wifi(Remote) |
| Work Mode |
|
| Solar First | Solar and UPS |
| Utility First | UPS and Backup |
| Solar—Battery—Utility | Solar—Battery—Utility |
![MERITSUN home battery backup wholesale for TV2 13]()
![MERITSUN home battery backup wholesale for TV2 14]()
![MERITSUN home battery backup wholesale for TV2 15]()
![MERITSUN home battery backup wholesale for TV2 16]()
![MERITSUN home battery backup wholesale for TV2 17]()
![MERITSUN home battery backup wholesale for TV2 18]()
![MERITSUN home battery backup wholesale for TV2 19]()
Company Features1. MeriTech Power Co.,Ltd. is a Chinese supplier of quality lithium ion home battery. We provide rapid, reliable and cost-effective manufacturing support. The factory owns state-of-the-art large-size production machines in the industry. These machines offer support for daily production needs, including product developing, designing, production, and packaging.
2. The company has built up a project management team. The team has profound expertise and experience in project planning, production control, budget planning, and materials procurement. All these are quite crucial for us to provide professional service to clients.
3. We already have a well-equipped factory. To maximize our reach in the market and to generate greater productivity, we keep upgrading the facility on a regular basis. Efforts will be made to meet customer requirements. Call now!
