Company Advantages1. The electrolyte used in MERITSUN home power battery is scrutinized. Any inferior electrolyte which easily volatilizes and leaks under high temperature is weeded out. The charge rate of the product is strong, shortening the charge time efficiently
2. The product will enhance the wearing experience and provide the desired comfort to the feet, which makes a huge difference in terms of foot health. The product is characterized by thermal performance
3. The product features an operating temperature range. In extreme environments, heating and cooling may be required to keep it within its operating temperature range. Strong reliability is one of the features of the product
4. The product is less prone to memory. It can be briefly charged at any time regardless of their charging state. Before shipment, the product will undergo 45 kinds of detailed tests
5. The product features self-discharge rates. The chemistries used have been refined to help reduce contacts between each other and minimize energy losses. It is very easy to use
![MERITSUN home battery backup wholesale for home appliances1 11]()

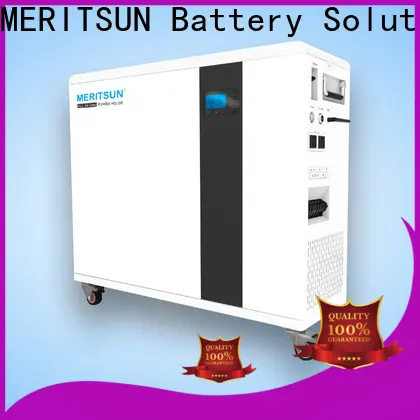

Feature
1.Built in Inverter and Smart BMS,Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
![MERITSUN home battery backup wholesale for home appliances1 12]()
| Models | Nominal Voltage | 48V |
| Battery |
|
| Nominal Voltage [V] | 51.2 |
| Voltage Range [V] | 44.8~57.6 |
| Capacity | 3KWH | 5KWH |
| Max.discharge rate | 0.7C | 0.7C |
| Max.charge rate | 0.5C | 0.5C |
| Battery Type | LiFePO Battery |
AC Output
|
| Rated Power | 3000VA | 5000VA |
| Overload Capacity | 120% (5s) |
| 200% (100ms) |
| Output Voltage | 230Vac±2% |
| Output Current | 13.7 A | 22 A |
| Rated Frequency | 50/60Hz |
| VTHD | 3% |
| Transfer Time | ＜10ms |
| Output Wave | Pure Sine Wave |
| Output Type | Multi-purpose Socket×2 |
| AC Input Voltage Range | 170~280Vac |
| Max AC Charge Current(Battery) | 40A | 60A |
PV Input
|
| Max. PV Power(Recommended) | 3000w | 4000w |
| Max. PV Voltage | 145V |
| MPPT Range | 60V~115V |
| Max PV Charge Current(Battery) | 60A | 80A |
| Operating Conditions |
|
| Operating Temperature | 0~55℃ |
| Storage Temperature | -15℃~60℃ |
| Humidity | 5%~95% |
| Cooling Strategy | Fan |
| Weight [kg] | 42 | 60 |
| Dimension [W x H x D, mm] | 700*580*230 | 700*580*230 |
| Enclosure Protection Rating | IP31 |
| Communication | Wifi(Remote) |
| Work Mode |
|
| Solar First | Solar and UPS |
| Utility First | UPS and Backup |
| Solar—Battery—Utility | Solar—Battery—Utility |
![MERITSUN home battery backup wholesale for home appliances1 13]()
![MERITSUN home battery backup wholesale for home appliances1 14]()
![MERITSUN home battery backup wholesale for home appliances1 15]()
![MERITSUN home battery backup wholesale for home appliances1 16]()
![MERITSUN home battery backup wholesale for home appliances1 17]()
![MERITSUN home battery backup wholesale for home appliances1 18]()
![MERITSUN home battery backup wholesale for home appliances1 19]()
Company Features1. With its own production base for home battery backup, MeriTech Power Co.,Ltd. has become a competitive exporter in China.
2. With strong scientific and technological strength, MeriTech Power Co.,Ltd. has developed and produced a series of house power battery with independent intellectual property rights.
3. Our rich manufacturing experience ensures high quality. Please contact us!
