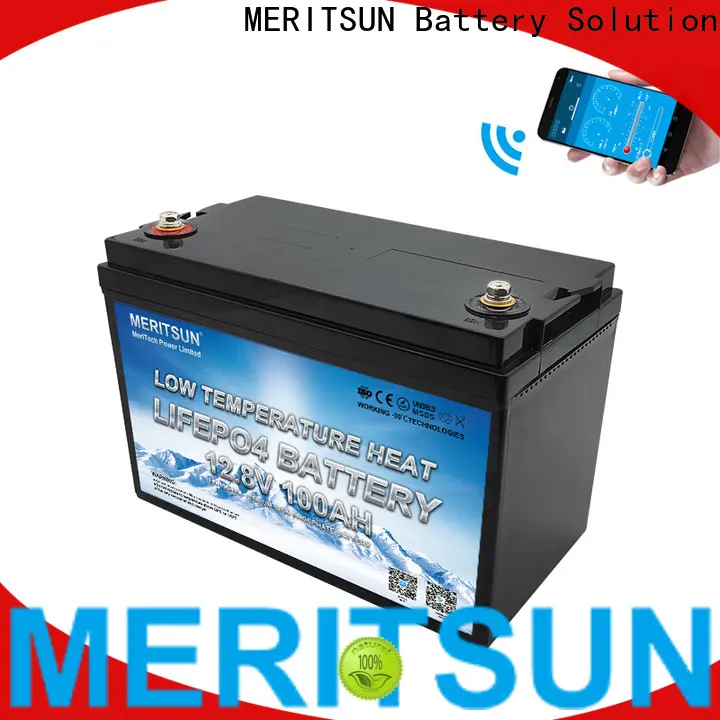

MERITSUN high-quality low temperature li-ion battery company for streetlight

Model:
LFP200-12.8, Bluetooth Battery
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Inquiry
Video Display
Company Advantages
1. Design of lithium ion battery at low temperature improves the quality in forming low temperature li-ion battery body framework. The product comes with OEM and ODM availability
2. The product has extremely low self-discharge, thus, the product is very suitable to operate for extended periods in remote and harsh environments. The weight of the product is about 40% of the weight of a comparable lead-acid battery
3. The product is less likely to leak. It is finely sealed with good materials which effectively hide its electrolyte inside. The charge rate of the product is strong, shortening the charge time efficiently
4. The product features low internal impedance. The surface of its conductive substrate has been treated to enhance its static conductivity and collect microcurrent of the active material. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
5. The product features a good reaction temperature. The active chemicals have been chosen to allow maximum operating temperature range. The product is designed with a protection circuit which can totally ensure the safety of users


MERITSUN high-quality low temperature li-ion battery company for streetlight 11




Electrica
Characteristics
Nominal Voltage12.8V
Nominal Capacity100Ah
Energy1280Wh
Internal Resistance≤150mΩ
Cycle Life≥4000 cycles @1C 100%DOD
Months Self Discharge<3%
Efficiency of Charge100% @0.5C
Efficiency of Discharge96~99% @1C
Standard ChargeCharge Voltage14.6±0.2V
Charge Mode0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charger Current20A
Max. Charge Current100A
Charge Cut-off Voltage15.6V±0.2V
Standard DischargeContinuous Current100A
Max. Pulse Current300A(<10s)
Discharge Cut-off Voltage10.5V
EnvironmentalCharge Temperature0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage TemperatureIP56
Water Dust ResistanceIP56
MechanicalCell & Method26650 4S36P
Plastic CaseABS
Dimensions (in./mm.)335*170*210mm  Customized
Weight (lbs./kg.)25kg
TerminalT11
Protocol (optional)SMBus/RS485/RS232
SOC (optional)


  • 01

    Working Environment: -30 ~ 65℃
  • 02

    Charging Protection: 0℃
  • 03

    Battery can be charged @ -30℃

MERITSUN high-quality low temperature li-ion battery company for streetlight 12

04


Super Graphene Lithium Cells

05


1.Heavy-Duty Long Cycle Life  @1C;

  1.   2.Smart Elite BMS, Super Safety Design

  • 06

    With same size of SLA batteries standard model
