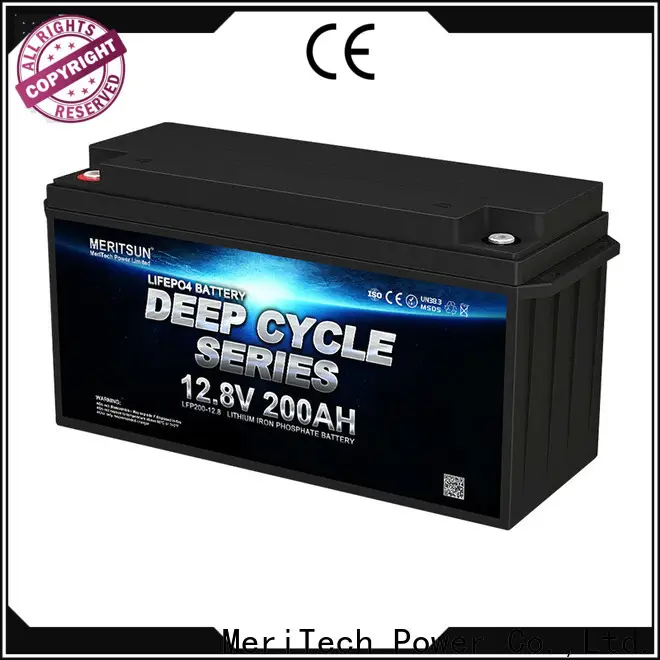

MERITSUN high-quality lithium iron phosphate battery series for home use
1. MERITSUN 24v lifepo4 battery pack is always ensured with good quality. Our factory guarantees a solid foundation for production and can minimize errors during processing. Before shipment, the product will undergo 45 kinds of detailed tests
2. The product, with so many advantages and huge economic benefits, has gradually developed to a popular trend in the industry. It can be widely applied in diverse areas ranging from small appliances and IT devices
3. lithium iron phosphate battery has got extensive use because of its advantages of 24v lifepo4 battery pack . It is produced in strict accordance with the UL standard
4. lithium iron phosphate battery has got the features of 24v lifepo4 battery pack , which is worthwhile to popularized. It is of extremely low self-discharge rate and can be left unused for a longer time
5. With technology innovation, such features as 24v lifepo4 battery pack make lithium iron phosphate battery warm welcomed by costumers. The product comes with OEM and ODM availability
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤180mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 60A | |
Max. Charge Current | 80A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 60A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 8V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 4S20P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*170*245mm | |
Weight (lbs./kg.) | 25kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is one of the largest exporter and manufacturer in the field of lithium iron phosphate battery .
2. Our factory strength lies in a variety of flexible production facilities. They are well equipped with the latest technologies and comply with scientific management standards, which makes them meet a wide range of needs for manufacturing requirements.
3. Looking forward, we look back to our learnings to develop beneficial product solutions that will deliver lasting value to our customers.
