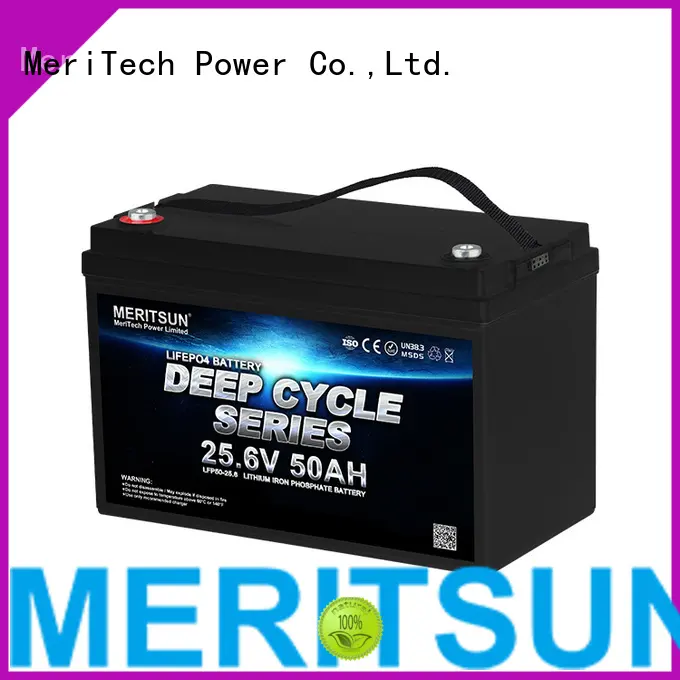

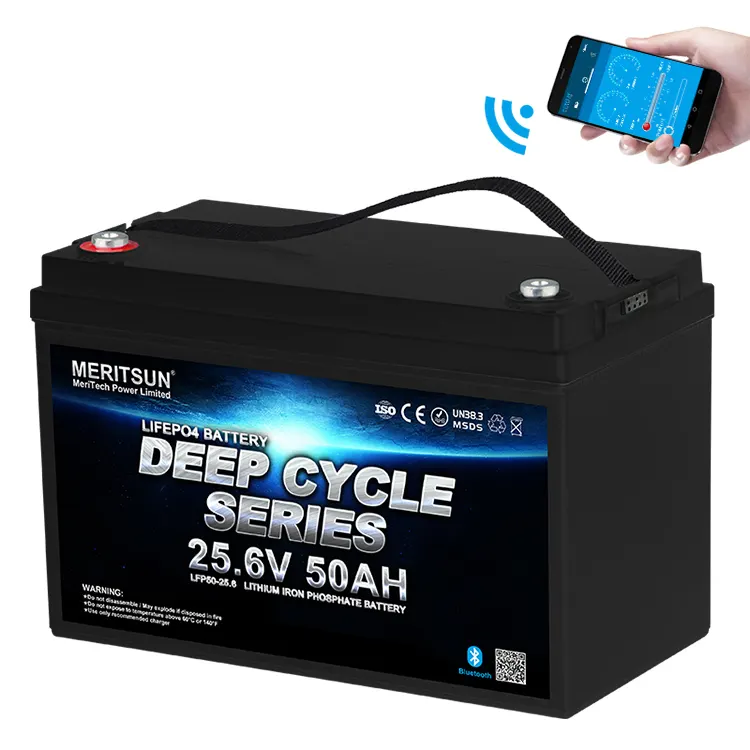

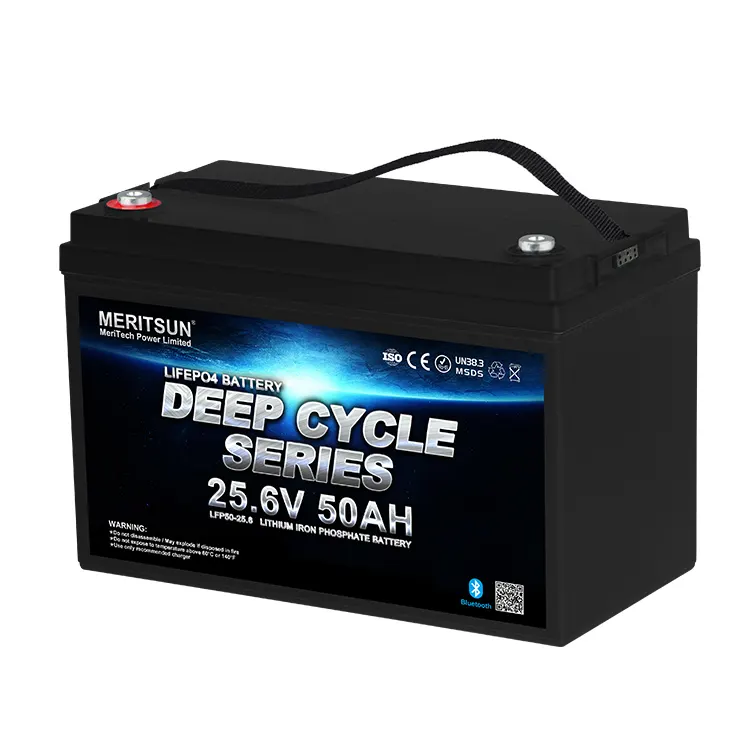

MERITSUN high power lifepo4 battery 48v series for home use
1. Extensive tests have been performed on MERITSUN lifepo4 battery manufacturers . They cover colorfastness testing, tear strength testing, abrasion resistance testing, and dimensional stability testing. It is packed with high-quality and sturdy packages
2. The product is safe for people to use. People can trust the fact that it does not have any electrolyte leakage or electric leakage problems which is dangerous for them. It has passed the certification of TLC, TUV, RoHS, and so on
3. The quality of this product is checked thoroughly to ensure that a defect-free product is provided. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
4. Our professional team helps strictly test the quality of this product. It can be used within a wider temperature range from -20℃ to 65℃
5. Our product has special features like high performance and long service life. The weight of the product is about 40% of the weight of a comparable lead-acid battery
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 50Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 45A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 8S2P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
The Product Feature, please refer to:
Technology info
The Technology info with regard to 24V 25.6V 50Ah Cycle Life >2000 cycles @1C 100%DOD Lithium iron Phosphate LiFePO4 Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
Professional Certification
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MERITSUN focuses on the production of lifepo4 battery 48v to create value for customers. The technical level of MeriTech Power Co.,Ltd. has reached the advanced level of China.
2. MeriTech Power Co.,Ltd. has a set of product layout elites with abundant market experience.
3. Adopting advanced and progressive technology to produce lithium battery price is a main focus for MERITSUN now. We are aware that the existence and development of our company are not only to make profits but most importantly, to assume social responsibility to repay society. Ask!
