MERITSUN high energy density lithium ion cell factory direct supply for telecom
Model:

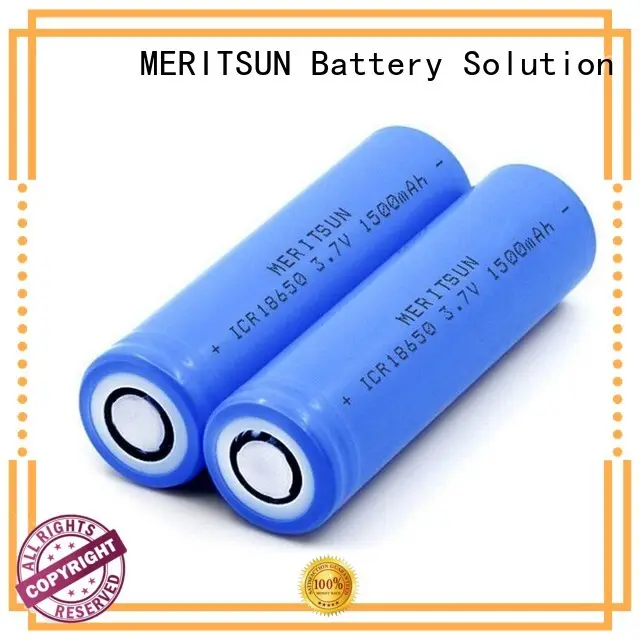

ICR18650 3.7V 1500mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. Many factors have been considered in the design of MERITSUN lithium ion cell . They are foot proportion, foot types, supportive point, comfort level, and distribution of stress and weight. The product with a long service life can be used for more than 8 years
2. Owing to the remarkable characteristics, the product is becoming increasingly widely applied in the market. The charge rate of the product is strong, shortening the charge time efficiently
3. The product generates little noise. It is developed and manufactured based on the noise standards for the industrial equipment. It is very easy to use
4. The product illuminates in a specific direction. It does not require an additional reflection or reorientation system to prevent light loss. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
Company Features
1. Engaging in the field of lithium ion cell for years, MeriTech Power Co.,Ltd. is a distinguished manufacturer and exporter in China.
2. Our professional R&D team takes great responsibility for developing new technology to keep li ion battery cell more competitive in this market.
3. We put people front and center. We constantly promote the safety, education, and well-being of our employees through a multitude of programs.
1. Many factors have been considered in the design of MERITSUN lithium ion cell . They are foot proportion, foot types, supportive point, comfort level, and distribution of stress and weight. The product with a long service life can be used for more than 8 years
2. Owing to the remarkable characteristics, the product is becoming increasingly widely applied in the market. The charge rate of the product is strong, shortening the charge time efficiently
3. The product generates little noise. It is developed and manufactured based on the noise standards for the industrial equipment. It is very easy to use
4. The product illuminates in a specific direction. It does not require an additional reflection or reorientation system to prevent light loss. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 5.55Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 1500mA | |
| 11 | Standard discharge current | 300mA | |
| 12 | Max Discharge current | 10~25C | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 47±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. Engaging in the field of lithium ion cell for years, MeriTech Power Co.,Ltd. is a distinguished manufacturer and exporter in China.
2. Our professional R&D team takes great responsibility for developing new technology to keep li ion battery cell more competitive in this market.
3. We put people front and center. We constantly promote the safety, education, and well-being of our employees through a multitude of programs.
