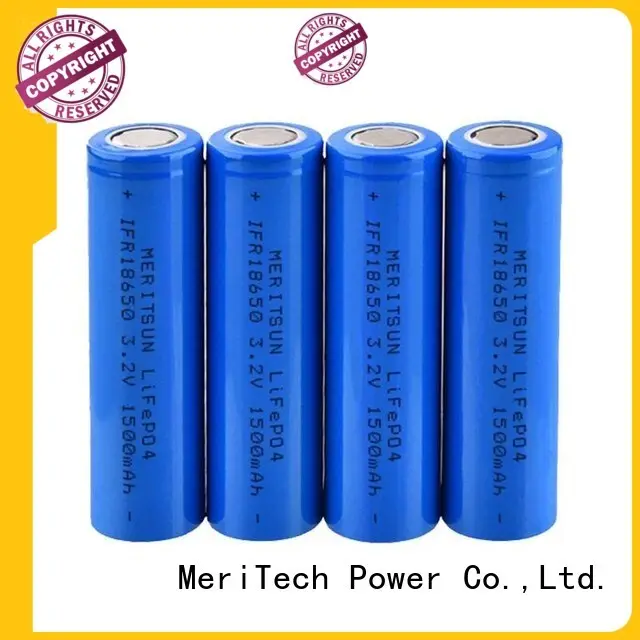

MERITSUN high drain 18650 battery cell customized for flashlight
Model:
IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Product Comparison
Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system.'s battery manufacturing companies is highly competitive in the domestic and foreign markets.Compared with products in the same category, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system.'s battery manufacturing companies has the following outstanding features.
Application Scope
battery manufacturing companies's application range is specifically as follows.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. is committed to providing customers with high-quality battery solutions as well as one-stop, comprehensive and efficient solutions.
1. All the production steps of MERITSUN buy li ion battery are strictly and perfectly done in accordance with the new cosmetic, pharmaceutical and dermatology trends in the beauty makeup industry.
2. The product features rust resistance. The high-grade gel coats are applied over hot-dip galvanized steel for deep and lasting effects.
3. The product has no flaws. It is made by using precision machinery such as CNC machine which is high precision.
4. Thanks to its flexibility and waterproofness, engineers found that this product is able to meet any extreme mechanical requirement.
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
