MERITSUN ess energy storage system factory direct supply for base transceiver station
- In order to make customer satisfied, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. constantly improves the after-sales service system. We strive to provide excellent services.
1. Visual inspections for MERITSUN energy storage devices have been conducted. They include the check for an untrimmed thread, shading variance between different pieces of the same style or different parts of the same piece, and loose needles.
2. Strict quality control processes are carried out throughout the production process, eliminating possible defects in the product.
3. This product is widely used in various fields, with broad application prospects and huge market potential.
4. The product is receiving greater market attention and is rather promising in the future application.
Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 4800Wh | |
| Internal Resistance | ≤80mΩ | |
| Cycle Life | >2000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 20A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 20A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P |
| Shell material | iron | |
| Dimensions | 442*400*221mm | |
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |
| Gravimetric specific energy | 80WH/KG |

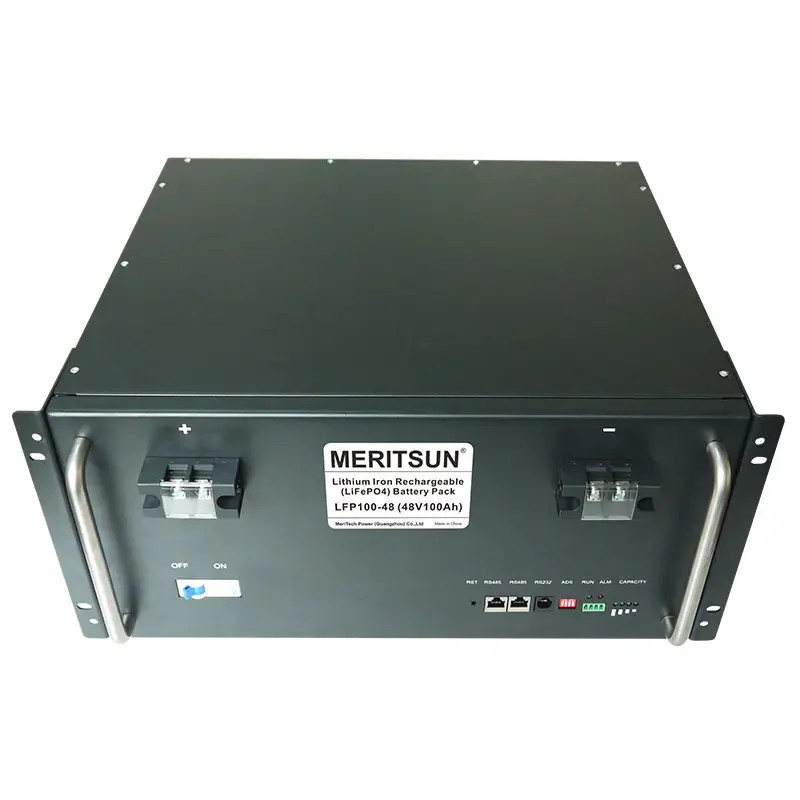

The 48V 100Ah ESS Energy Storage System LiFePO4 Battery
Internal structure, please refer to:
System Diagram of Lithium Module and BMS
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. was founded many years ago and is a manufacturing company headquartered in China. We are good at designing and producing energy storage devices.
2. MeriTech Power Co.,Ltd. has advanced manufacturing technology and performs strict production process.
3. With huge inventory, complete specifications and stable supply, MeriTech Power Co.,Ltd. will definitely give customers the best. Get price! MeriTech Power Co.,Ltd. has been committed to technological innovation and quality improvement for ess energy storage system . Get price!
