MERITSUN, the Best Lithium Energy Solution Provider.

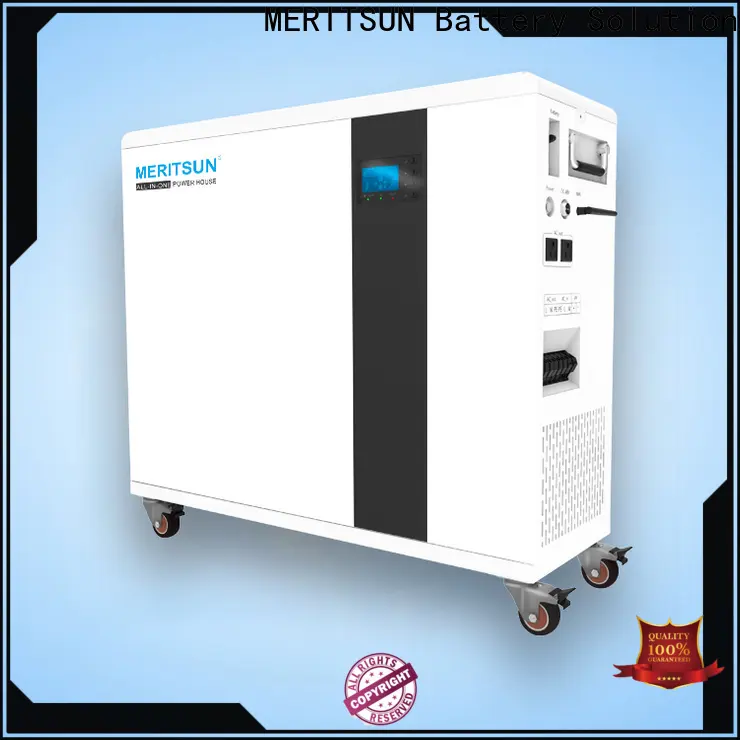

MERITSUN energy saving house power battery supplier for family 1

MERITSUN energy saving house power battery supplier for family 2

MERITSUN energy saving house power battery supplier for family 3

MERITSUN energy saving house power battery supplier for family 4

MERITSUN energy saving house power battery supplier for family 5

MERITSUN energy saving house power battery supplier for family 6

MERITSUN energy saving house power battery supplier for family 7

MERITSUN energy saving house power battery supplier for family 8

MERITSUN energy saving house power battery supplier for family 9

MERITSUN energy saving house power battery supplier for family 10

MERITSUN energy saving house power battery supplier for family

Model:

48V100Ah(5KWH)battery

Rated Voltage (V):

48V

Rated Capacity (Ah):

100Ah

Supply Ability:

5000 Pieces per Month

MOQ:

Payment:

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal

Approx Dimension (mm):

450*350*805 mm

Approx Weight (Kg):

60kg

Certificate:

ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on

Please:

click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.

Inquiry

Company Advantages
1. High standard and high quality design concept is on house power battery . The product comes with OEM and ODM availability
2. Its softness and hypoallergenic qualities are almost guaranteed to be kind to people's skin. It will not react badly, causing rashes, skin irritations and more. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
3. This product features a large energy storage capacity. The materials used in the battery cells have a huge reversible capacity. It can be used within a wider temperature range from -20℃ to 65℃

MERITSUN energy saving house power battery supplier for family 11

Feature

1.Built in Inverter and Smart BMS.Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
                                   4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
                              5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.




ModelsAI 3K
AI 5K
Battery
Nominal Voltage [V]51.2
Voltage Range [V]44.8~57.6
Capacity3kWH5kWH
Max.charge rate0.5C0.5C
Battery TypeLiFePO Battery
AC Output
Rated Power3000VA5000VA
Overload Capacity120% (5s)
200%（100ms）
Output Voltage230Vac±2%
Output Current13.7 A22 A
Rated Frequency50/60Hz
VTHD3%
Transfer Time＜10ms
Output WavePure Sine Wave
Output Type Multi-purpose Socket×2
AC Input Voltage Range170~280Vac
AC Input Frequency 50Hz/60Hz
Max AC Charge
Current(Battery)
40A60A
PV Input
Max. PV  Power(Recommended)
3000w 4000w
Max. PV Voltage145V
MPPT Range60V~115V
Max PV Charge Current(Battery)
60A80A
Operating Conditions
Operating Temperature0~55℃
Storage Temperature-15℃~60℃
Humidity 5%~95%
Cooling Strategy Fan
Weight [kg] 4260
Dimension [W x H x D, mm]700*580*230700*580*230
Enclosure Protection RatingIP31
Communication Wifi(Remote)
Warranty 5 years
Work Mode
Solar FirstSolar and UPS
Utility FirstUPS and Backup
Solar—Battery—UtilityLoad Match Mode

Company Features
1. MeriTech Power Co.,Ltd. is a home power battery supplier with rich industry experience.
2. Over the years, we have achieved the recognization and support of customers from Europe, North America, South America, and some Asia-Pacific countries. We have provided various product solutions for them for years.
3. MERITSUN sincerely hope to build up long-term cooperation relationships with every customers by high quality. Inquire online!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

15KWh Multi-Function Integration Energy System 51.2V15KWH

Meritsun Sodium Ion Cylindrical Battery

Meritsun Sodium Ion Battery Na 12v35Ah

Meritsun Sodium Ion Battery Na 12v52.5Ah

Meritsun Sodium Ion Battery Na 12v70Ah

Established in 1999, we have 20+ years of energy professional experience and integrated solutions services in energy storage application industrial, and further reach the demands the smart & green energy era.

QUICK LINK

ABOUT US

sOLUTION

Email: sales@meritsunpower.com

Service Hotline: +86-13632226296

Tel: +86-20-3659 5615 / +86-20-3243 9575

Fax: +86-20-3243 9640

Headquarters Address: Yongtai Business Center, B213, Baiyun, Guangzhou

Models	AI 3K	AI 5K
Battery
Nominal Voltage [V]	51.2
Voltage Range [V]	44.8~57.6
Capacity	3kWH	5kWH
Max.charge rate	0.5C	0.5C
Battery Type	LiFePO Battery
AC Output
Rated Power	3000VA	5000VA
Overload Capacity	120% (5s)
	200%（100ms）
Output Voltage	230Vac±2%
Output Current	13.7 A	22 A
Rated Frequency	50/60Hz
VTHD	3%
Transfer Time	＜10ms
Output Wave	Pure Sine Wave
Output Type	Multi-purpose Socket×2
AC Input Voltage Range	170~280Vac
AC Input Frequency	50Hz/60Hz
Max AC Charge Current(Battery)	40A	60A
PV Input
Max. PV Power(Recommended)	3000w	4000w
Max. PV Voltage	145V
MPPT Range	60V~115V
Max PV Charge Current(Battery)	60A	80A
Operating Conditions
Operating Temperature	0~55℃
Storage Temperature	-15℃~60℃
Humidity	5%~95%
Cooling Strategy	Fan
Weight [kg]	42	60
Dimension [W x H x D, mm]	700580230	700580230
Enclosure Protection Rating	IP31
Communication	Wifi(Remote)
Warranty	5 years
Work Mode
Solar First	Solar and UPS
Utility First	UPS and Backup
Solar—Battery—Utility	Load Match Mode
