Company Advantages1. home battery backup is scientific in design, reasonable in structure and is easy to to install and disassemble. Moreover, the terminal protective cap is provided to reduce the damage rate of the terminal.
2. The product is used in many applications for its quick discharging ability. It is especially useful when there is in need of power source temporarily. The charge rate of the product is strong, shortening the charge time efficiently
3. This product is safe. It is made of materials that are non-toxic, and eco-friendly with little or no Volatile Organic Chemicals (VOCs). It is packed with high-quality and sturdy packages
4. The product is safe and harmless. During the production, no toxic dyes and agents have been adopted, for example, formaldehyde will be totally eliminated. The product is characterized by thermal performance
5. This product has the desired dimensional stability. It won't be distorted, twisted or shorten in length and width after washing or other wet processing. The weight of the product is about 40% of the weight of a comparable lead-acid battery

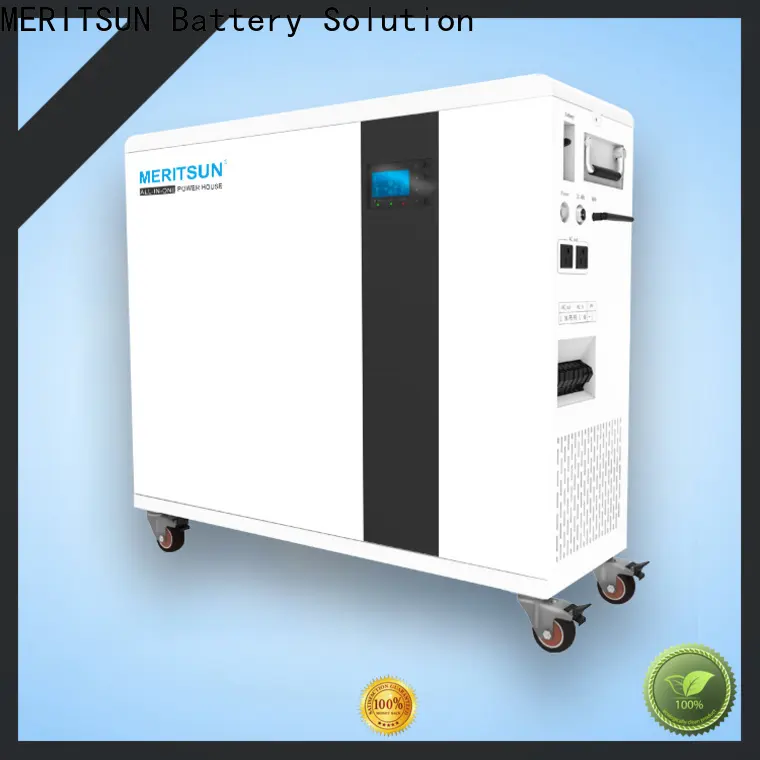

![MERITSUN energy saving home battery backup factory for TV 11]()
Feature
1.Built in Inverter and Smart BMS.Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
![MERITSUN energy saving home battery backup factory for TV 12]()
| Models | AI 3K
| AI 5K |
| Battery |
| Nominal Voltage [V] | 51.2 |
| Voltage Range [V] | 44.8~57.6 |
| Capacity | 3kWH | 5kWH |
| Max.charge rate | 0.5C | 0.5C |
| Battery Type | LiFePO Battery |
| AC Output |
|
| Rated Power | 3000VA | 5000VA |
| Overload Capacity | 120% (5s) |
200%（100ms）
|
| Output Voltage | 230Vac±2% |
| Output Current | 13.7 A | 22 A |
| Rated Frequency | 50/60Hz |
| VTHD | 3% |
| Transfer Time | ＜10ms |
| Output Wave | Pure Sine Wave |
| Output Type | Multi-purpose Socket×2 |
| AC Input Voltage Range | 170~280Vac |
| AC Input Frequency | 50Hz/60Hz |
Max AC Charge Current(Battery) | 40A | 60A |
| PV Input |
Max. PV Power(Recommended) | 3000w | 4000w |
| Max. PV Voltage | 145V
|
| MPPT Range | 60V~115V |
Max PV Charge Current(Battery) | 60A | 80A |
| Operating Conditions |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -15℃~60℃ |
| Humidity | 5%~95% |
| Cooling Strategy | Fan |
| Weight [kg] | 42 | 60 |
| Dimension [W x H x D, mm] | 700*580*230 | 700*580*230 |
| Enclosure Protection Rating | IP31 |
| Communication | Wifi(Remote) |
| Warranty | 5 years |
| Work Mode |
| Solar First | Solar and UPS |
| Utility First | UPS and Backup |
| Solar—Battery—Utility | Load Match Mode |
![MERITSUN energy saving home battery backup factory for TV 13]()
![MERITSUN energy saving home battery backup factory for TV 14]()
![MERITSUN energy saving home battery backup factory for TV 15]()
![MERITSUN energy saving home battery backup factory for TV 16]()
![MERITSUN energy saving home battery backup factory for TV 17]()
![MERITSUN energy saving home battery backup factory for TV 18]()
![MERITSUN energy saving home battery backup factory for TV 19]()
![MERITSUN energy saving home battery backup factory for TV 20]()
Company Features1. Enjoying a high reputation in the China market, MeriTech Power Co.,Ltd. is an outstanding home battery backup manufacturer with qualifications and competence.
2. That MeriTech Power Co.,Ltd. utilizes home power battery technology guarantees a better quality of house power battery .
3. Our company support and contribute to sustainability goals that positively affect communities and the planet. We have made progress in reducing resources and packing materials utilization so as to reduce carbon footprint.
