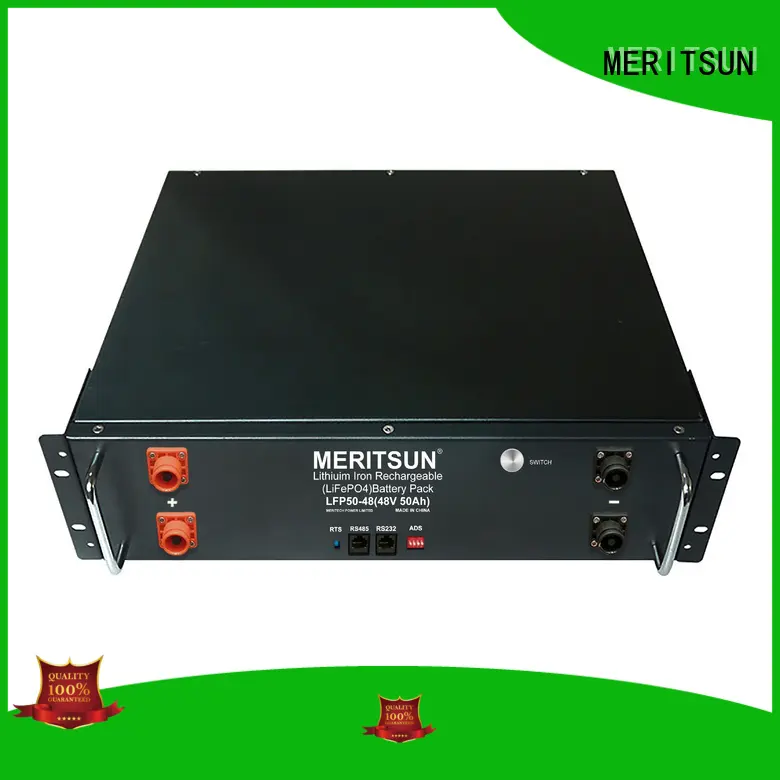

MERITSUN durable ess energy storage system factory direct supply for commercial
1. The design of MERITSUN energy storage system price is elaborate. It addresses the following areas of research and inquiry: Human Factors (anthropometry and ergonomics), Humanities (psychology, sociology, and human perception), Materials (features and performance), etc. The product is designed with a protection circuit which can totally ensure the safety of users
2. This product enjoys the increasing popularity in the industry that is favored by our customers. The charge rate of the product is strong, shortening the charge time efficiently
3. Field operation indicates that ess energy storage system is of energy storage system price . The product is produced under the principle of environmental protection
Electrical Characteristics | Model | 48V 50Ah (LiFePO4 Lthium iron Phosphate Battery) | ||||
| Energy | 2400Wh | |||||
| Internal Resistance | ≤30mΩ | |||||
| Cycle Life | ≥2000 cycles @1.0C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Standard Charge | Charge Voltage | 53.2~54V | ||||
| Charge Mode | 0.2C to 54V, then 54V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 10A | |||||
| Max. Charge Current | 50A | |||||
| Charge Cut-off Voltage | 57.6±0.2V | |||||
| Standard Discharge | Continuous Current | 10A | ||||
| Max continuous discharge current | 50A | |||||
| Discharge Cut-off Voltage | 37.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |||||
| Mechanical | Cell & Method | 3.2V50Ah 15S1P | ||||
| Shell material | iron | |||||
| Dimensions | 442*385*132mm | |||||
| Weight (lbs./kg.) | Approx: 30kg | |||||
| Gravimetric specific energy | 90.5WH/KG | |||||
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Company Features
1. MeriTech Power Co.,Ltd. is a Chinese manufacturer focused on supplying quality energy storage system price . Years of development have witnessed our growth in this industry. We are delighted that our stunning development has won many awards. These awards are a testament to the continued care and attention we put into all of the projects.
2. We have already invested in a series of advanced manufacturing facilities. With the aid of these highly efficient facilities, we are able to provide products for our customers by complying with the highest standards.
3. The workshop has been repleted with all kinds of advanced manufacturing machines. These machines feature high performance in machining accuracy and have a high automation level. This contributes to improving the overall productivity. The realization of ess energy storage system is the mission of MERITSUN. Check now!
