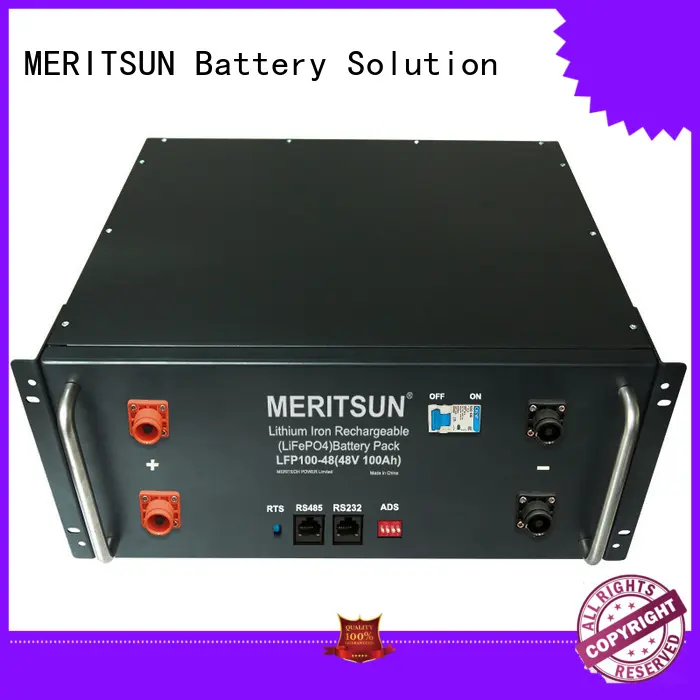

MERITSUN durable electrical energy storage systems manufacturing for residential
Model:
LFP100-48
Rated Voltage (V):
48V
Rated Capacity (Ah):
100AH
Supply Ability:
5000 Pieces per Month
MOQ:
1
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
442*410*220mm
Approx Weight (Kg):
60kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Application Scope
Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system.'s battery energy storage system can be used in multiple industries.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. has been engaged in the production of battery solutions for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
Enterprise Strength
- Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. runs a comprehensive product supply and after-sales service system. We are committed to providing thoughtful services for customers, so as to develop their greater sense of trust for the company.
1. In the development phase of MERITSUN energy storage system price , different fabric combinations and formulas and dyes have been tried by the R&D team.
2. This product is pill resistant, and won’t develop little balls of thread on the surface over time with proper care.
3. This product will retain its shape and will not tear after multiple times of washing. The tight weave will prevent it from shrinking after washing.
4. The product is incredibly adaptable for people who want to make the most of the space- size, shape, flooring, walls, placement, etc.
Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) | ||||
| Energy | 4800Wh | |||||
| Internal Resistance | ≤80mΩ | |||||
| Cycle Life | ≥4000 cycles @1.0C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Months Self Discharge | Charge Voltage | 54.0±0.1V | ||||
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A (Customizable) | |||||
| Max. Charge Current | 50A (Customizable) | |||||
| Charge Cut-off Voltage | 57.6±0.2V | |||||
| Standard Discharge | Continuous Current | 20A (Customizable) | ||||
| Max continuous discharge current | 50A (Customizable) | |||||
| Discharge Cut-off Voltage | 37.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |||||
Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P | ||||
| Shell material | iron | |||||
| Dimensions | 442*400*221mm | |||||
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |||||
| Gravimetric specific energy | 80WH/KG | |||||
Technology info
/ For more details, please contact us！
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Company Features
1. MeriTech Power Co.,Ltd. supplies and manufactures a wide range of scales.
2. MeriTech Power Co.,Ltd. owns a professional team of technicians to keep improving our electrical energy storage systems .
3. Always keeps integrity in mind is a fundamental corporate culture of MeriTech Power Co.,Ltd.. Please contact us! Cultivated by deep enterprise civilization, MeriTech Power Co.,Ltd. is heavily influenced for being a major home energy storage company. Please contact us! MERITSUN is continuously upgrading the grade of support for clients. Please contact us! MERITSUN believes that the popularity of battery energy storage system depends on its high quality and professional service. Please contact us!
