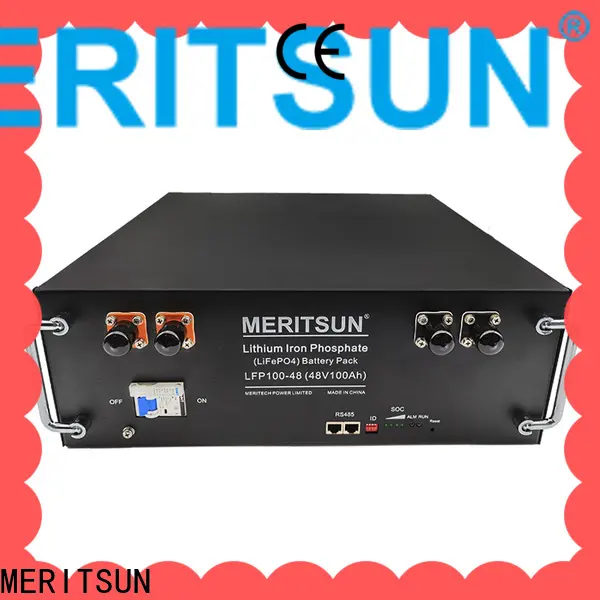

MERITSUN durable battery energy storage system supplier for base transceiver station
Model:
LFP100-48
Rated Voltage (V):
48
Rated Capacity (Ah):
100
Supply Ability:
500000 Pieces per Month
MOQ:
1
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
442*400*221
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
| Model | LFP50-48 | LFP100-48 | LFP200-48 |
| Nominal Voltage(V) | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 50 | 100 | 200 |
| Usable Capacity(Wh) | 2400 | 4800 | 9600 |
| Dimension(mm) | 442*385*132 customizabl | 442*410*220 customizabl | 442*450*250 customizabl |
| Weight(Kg) | 29 | 44 | 86 |
| Cycle Life | 4000~6000，25℃ | 4000~6000，25℃ | 4000~6000，25℃ |
| Communication Port | RS232，RS485，CAN | RS232，RS485，CAN | RS232，RS485，CAN |
| Working Temperature ℃ | 0~55 | 0~55 | 0~55 |
| Discharge Voltage (V) | 39~40.5 | 40.5~42.5 | 40.5~42.5 |
| Charge Voltage(V) | 53.2~54 | 53.2~54 | 53.4~54 |
| Internal Impedance(mΩ) | ≥50 | ≥50 | ≥50 |
| Charge / Discharge Current (A) | 10（Recommended） | 20（Recommended） | 40（Recommended） |
| 50（MAX） | 100（MAX） | 100（MAX） | |
| Design Life(Years) | 12 | 12 | 12 |
