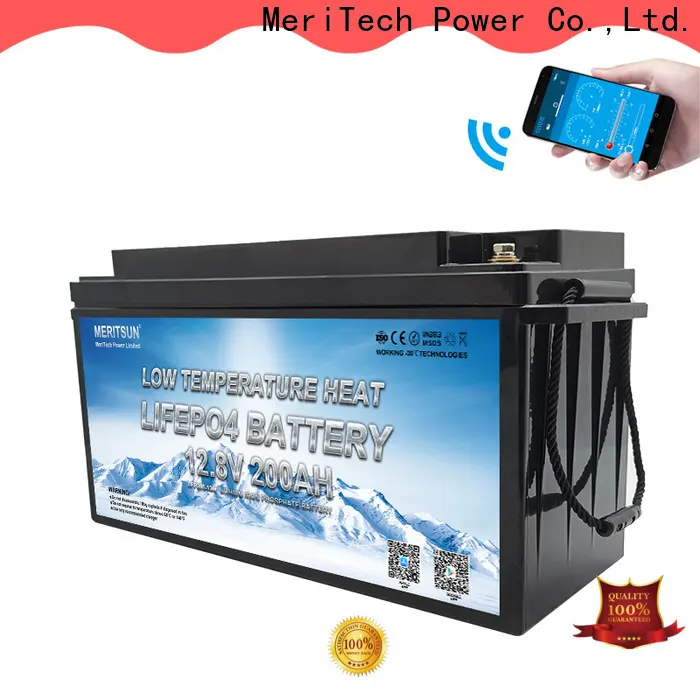

MERITSUN custom low temperature lithium ion battery manufacturers for house
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. low temperature lithium ion battery is deeply favored by customers with scientific design and compact structure. Moreover, it is easy to assemble, disassemble, and maintain.
2. MeriTech Power Co.,Ltd. delivers quickly and has competitively price. Made of reliable chemical substances, the product is of superior safety
3. This product ensures chemical safety. Complying with legislation such as RoHS and REACH, it contains no certain carcinogenic, mutagenic, reproductive toxic, endocrine disruptive and nonbiodegradable chemicals or substances. The product is characterized by thermal performance
4. The product has the advantage of high machining precision. It is controlled by a precisely programmed computer system and processed according to the instructions given in the digital form. It has passed the certification of TLC, TUV, RoHS, and so on
Company Features
1. At present, most of the low temperature lithium ion battery series produced by us are original products in China.
2. Our company runs in line with "customer first, integrity first" business philosophy. We aim to hold a stable status in the market taking this philosophy as our basis.
1. low temperature lithium ion battery is deeply favored by customers with scientific design and compact structure. Moreover, it is easy to assemble, disassemble, and maintain.
2. MeriTech Power Co.,Ltd. delivers quickly and has competitively price. Made of reliable chemical substances, the product is of superior safety
3. This product ensures chemical safety. Complying with legislation such as RoHS and REACH, it contains no certain carcinogenic, mutagenic, reproductive toxic, endocrine disruptive and nonbiodegradable chemicals or substances. The product is characterized by thermal performance
4. The product has the advantage of high machining precision. It is controlled by a precisely programmed computer system and processed according to the instructions given in the digital form. It has passed the certification of TLC, TUV, RoHS, and so on
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. At present, most of the low temperature lithium ion battery series produced by us are original products in China.
2. Our company runs in line with "customer first, integrity first" business philosophy. We aim to hold a stable status in the market taking this philosophy as our basis.
