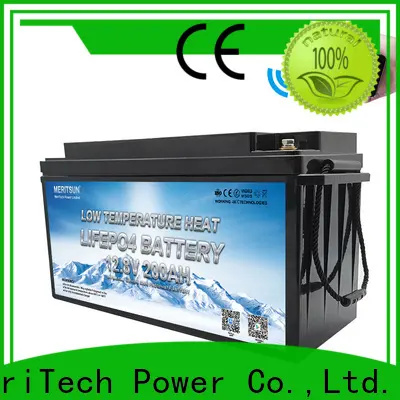

MERITSUN custom low temperature li-ion battery for business for robot
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. low temperature li-ion battery is strongly recommended for its lithium ion battery at low temperature design. Made of reliable chemical substances, the product is of superior safety
2. Being trusted by long-term partners, MERITSUN is encouraged to produce higher-quality low temperature li-ion battery . It can be widely applied in diverse areas ranging from small appliances and IT devices
3. The product is environmentally friendly. Many of the materials within these batteries, such as lead, plastic, and metal, are recyclable. The product is produced under the principle of environmental protection
Company Features
1. MeriTech Power Co.,Ltd. has a team of specialists and manufacturing engineers.
2. We are fully prepared to serve customers with low temperature li-ion battery .
1. low temperature li-ion battery is strongly recommended for its lithium ion battery at low temperature design. Made of reliable chemical substances, the product is of superior safety
2. Being trusted by long-term partners, MERITSUN is encouraged to produce higher-quality low temperature li-ion battery . It can be widely applied in diverse areas ranging from small appliances and IT devices
3. The product is environmentally friendly. Many of the materials within these batteries, such as lead, plastic, and metal, are recyclable. The product is produced under the principle of environmental protection
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. MeriTech Power Co.,Ltd. has a team of specialists and manufacturing engineers.
2. We are fully prepared to serve customers with low temperature li-ion battery .
