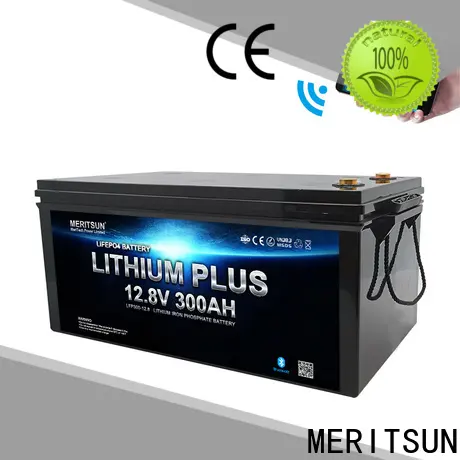

MERITSUN custom bluetooth lithium battery with good price for robot1
1. MERITSUN 12v 100ah lithium ion battery is of various modern and stylish designs. Strong reliability is one of the features of the product
2. All of our bluetooth lithium battery comply with international quality standards and are greatly appreciated in a variety of different markets. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
3. This product has good colorfastness. The dyes are carefully selected and the binding bonds of the dyes are in complete agreement with the fibers. It is produced in strict accordance with the UL standard
4. The product has a self-protective function. When there is a malfunction, it can automatically diagnose and show what's wrong with itself.
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 100Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 49A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 8S10P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 522*240*224mm | |
Weight (lbs./kg.) | 30.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd.'s service in bluetooth lithium battery industry ranks first in the domestic industry. MeriTech Power Co.,Ltd. is known for its technological achievements.
2. Through the efforts of its excellent R&D team, MeriTech Power Co.,Ltd. is the young pioneer in lithium battery with bluetooth market.
3. As a powerful technology company, MeriTech Power Co.,Ltd. keeps improving its production efficiency. Quality inspectors in our factory will check material in accordance with the standards. Get an offer!
