MERITSUN commercial energy storage systems manufacturing for base transceiver station
- With an excellent logistics management system, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. is committed to providing efficient delivery for customers, so as to improve their satisfaction with our company.
1. MERITSUN home energy storage system meets the international sanitary ware standards with regard to design principles, hygiene requirements, production techniques, and surface treatment.
2. The product is corrosion resistant. It resists corrosion even in the presence of oxidizing acids (like nitric acid), chlorides, saltwater, and industrial and organic chemicals.
3. Investing some money in buying this product is a one-time cost, but the benefits of the water purifying effect are continuous.
4. The product is used in a variety of industries such as the manufacturing of pharmaceuticals and the food and beverage and in making and sustaining ice rinks.
Electrical Characteristics | Model | 48V 50Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 2400Wh | |
| Internal Resistance | ≤110mΩ | |
| Cycle Life | >2000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 10A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 10A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S1P |
| Shell material | iron | |
| Dimensions | 442*385*132 mm | |
| Weight (lbs./kg.) | Approx: 30kg (66.14 Ibs) | |
| Gravimetric specific energy | 80WH/KG |

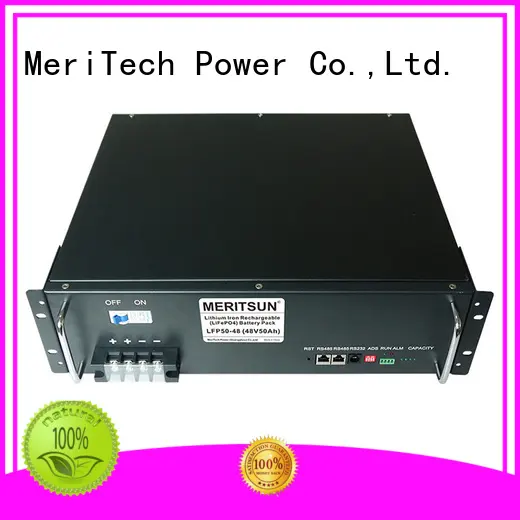

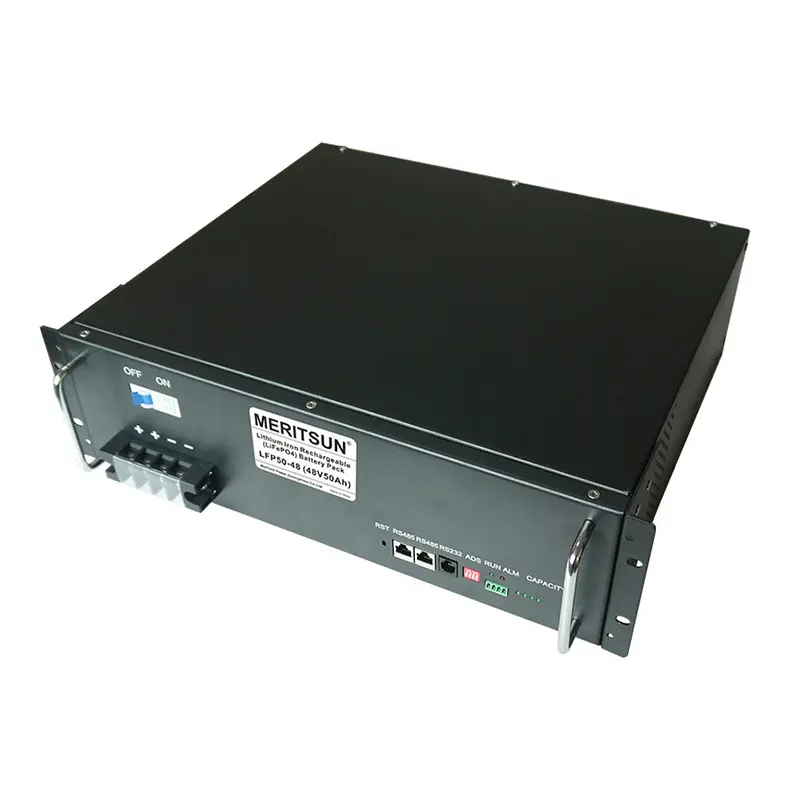

The ESS Energy Storage System 48V 50Ah LiFePO4 Battery

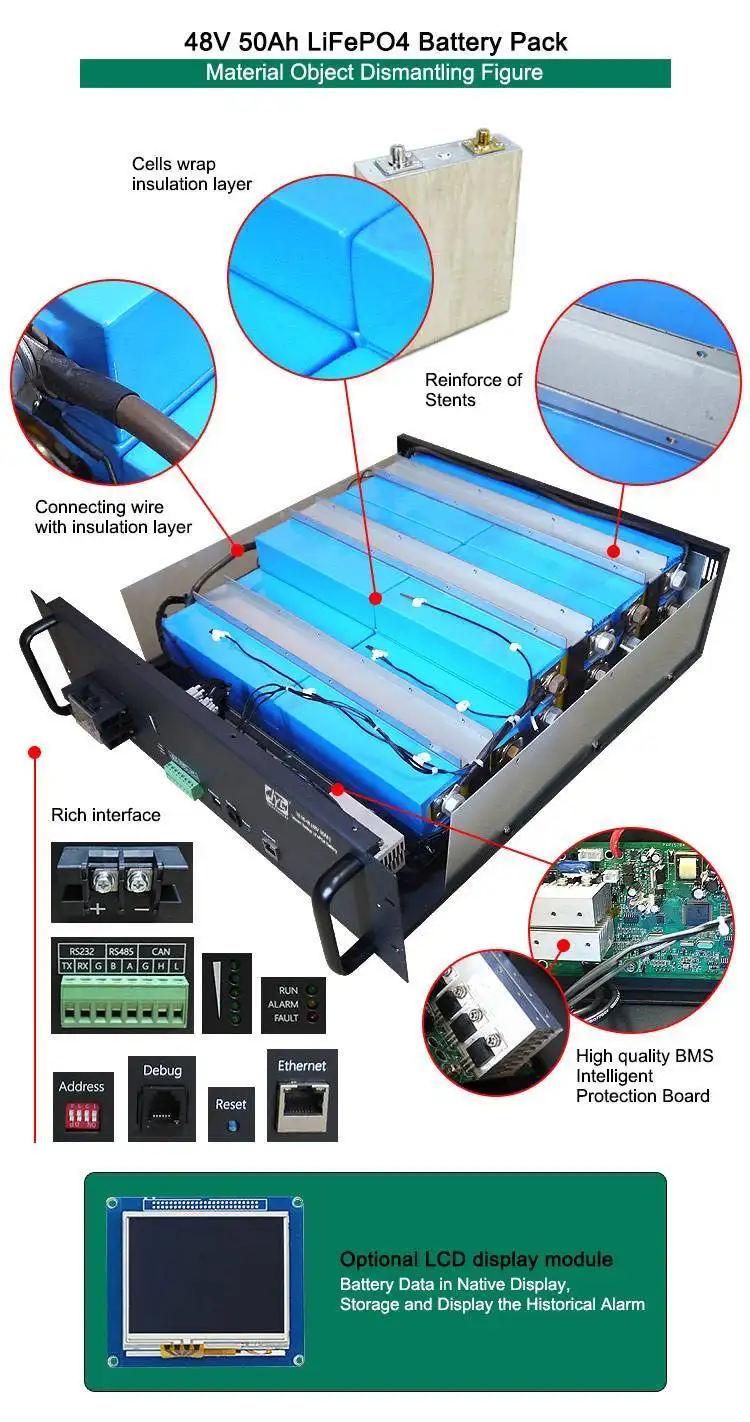

Internal structure, please refer to:
System Diagram of Lithium Module and BMS
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)

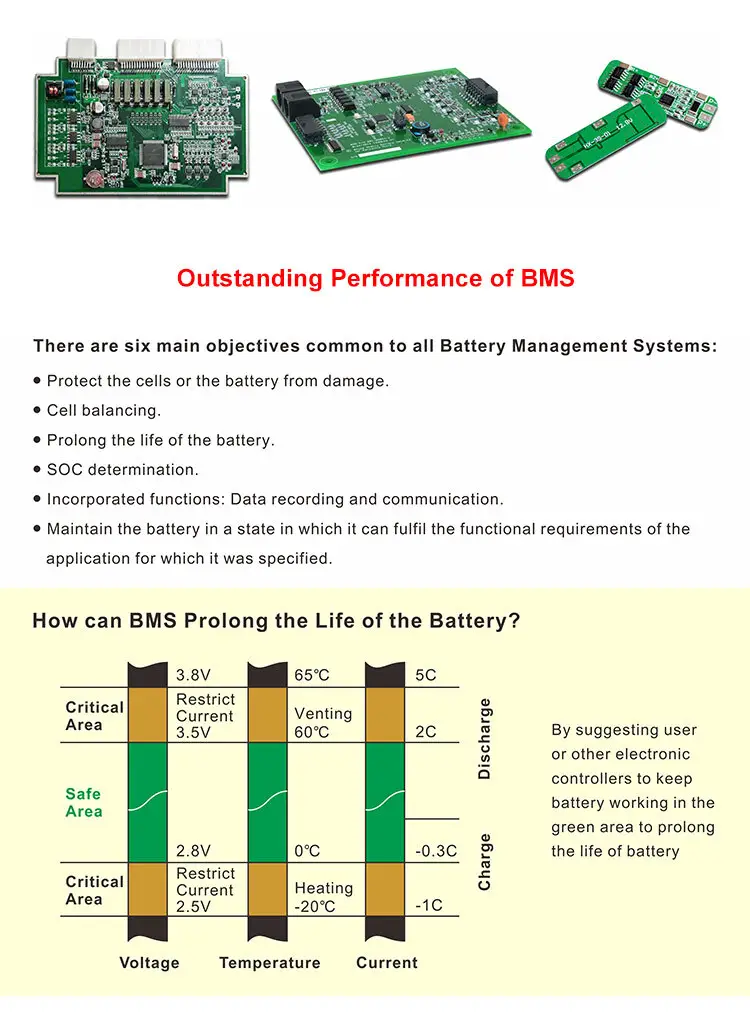

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. As an outstanding representative of the domestic commercial energy storage systems industry, MeriTech Power Co.,Ltd. has served customers for decades of years.
2. To satisfy the needs of technical innovation in this society, our experienced team has been researching and developing residential energy storage systems persistently.
3. battery energy storage is one of the reason that customers choose MERITSUN. Get an offer! Upholding home energy storage system proves to be the source of new impetus for the sustained and healthy development of MERITSUN. Get an offer! Constant innovation is indispensable for long-term development of MeriTech Power Co.,Ltd.. Get an offer! MeriTech Power Co.,Ltd. will work strenuously to give you the best product and service. Get an offer!
