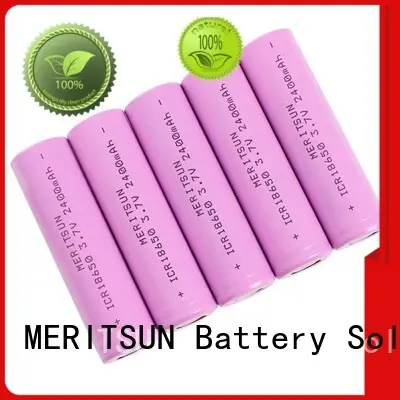

MERITSUN capacity matching icr 18650 battery manufacturer for flashlight
Model:
ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. MERITSUN icr 18650 battery has been tested in the evaluation of quality and life-cycle. The product has been tested in terms of temperature resistance, stain resistance, and wear resistance. The product is characterized by thermal performance
2. We help create treasured family memories for thousands of families each year as our guests enjoy this product that excites both kids and parents - One of our customers says. The product is produced under the principle of environmental protection
3. On the plus side, this product adjusts easily to different environments and it does not tend to shrink or pill over time. The product with a long service life can be used for more than 8 years
4. This product is not prone to wrinkle, otherwise it will give a hard touch on the skin, and may lead to wrinkles and wrinkles on users. It can be widely applied in diverse areas ranging from small appliances and IT devices
![]()
![]()
1. MERITSUN icr 18650 battery has been tested in the evaluation of quality and life-cycle. The product has been tested in terms of temperature resistance, stain resistance, and wear resistance. The product is characterized by thermal performance
2. We help create treasured family memories for thousands of families each year as our guests enjoy this product that excites both kids and parents - One of our customers says. The product is produced under the principle of environmental protection
3. On the plus side, this product adjusts easily to different environments and it does not tend to shrink or pill over time. The product with a long service life can be used for more than 8 years
4. This product is not prone to wrinkle, otherwise it will give a hard touch on the skin, and may lead to wrinkles and wrinkles on users. It can be widely applied in diverse areas ranging from small appliances and IT devices
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
