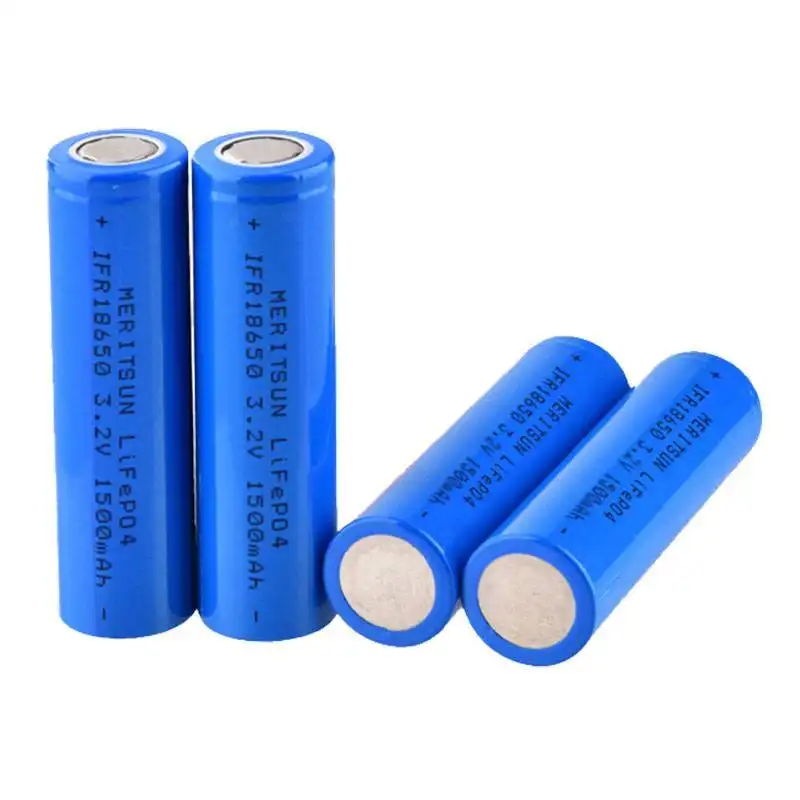

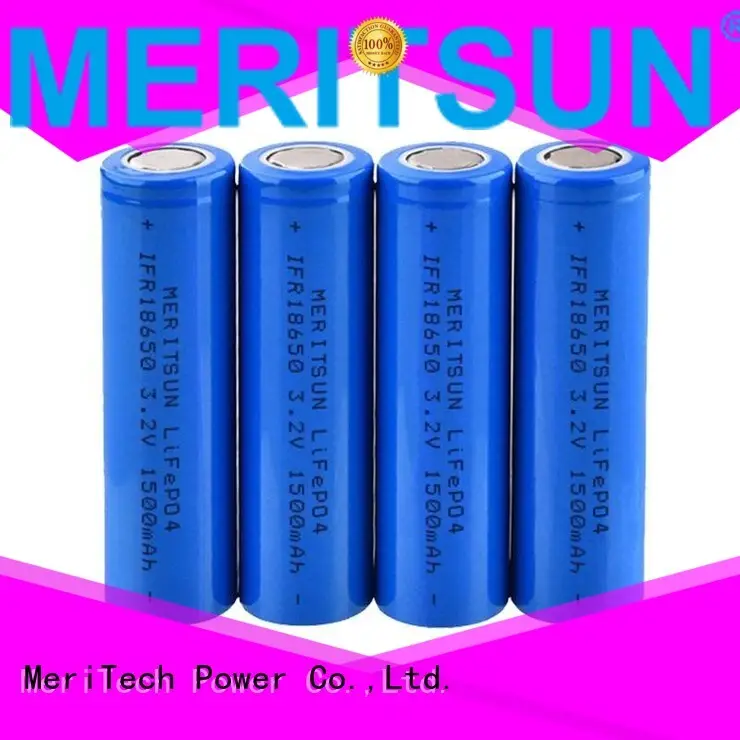

MERITSUN Brand icr drain 32v ifr li ion battery cell
Model:
IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Product Comparison
Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. insists on the use of high-quality materials and advanced technology to manufacture battery manufacturing companies. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. produces battery solutions in strict accordance with national and related standards. To effectively guarantee the good quality, we inspect all equipment before shipping. We provide a worry-free buying experience for customers.Compared with same kind of products in the industry, battery manufacturing companies has the following highlights due to the better technical capability.
Application Scope
Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system.'s battery solutions can be used in multiple industries.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. could customize comprehensive and efficient solutions according to customers' different needs.battery solutions produced by Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. have passed the international quality certification. With a focus on environmental protection, they are energy-saving and eco-friendly. In addition, they are of good safety, stable performance, reliable quality, and easy installation. They are highly praised by consumers and have a broad market.
1. It is produced in strict accordance with the UL standard. These lithium ion battery cells are manufactured using quality raw material and are available in various capacities.
2. The charge rate of the product is strong, shortening the charge time efficiently. li ion battery cell,3.7 volt rechargeable lithium ion battery's popularity has close relation with the its features such as 18650 rechargeable lithium ion battery.
3. It can be used within a wider temperature range from -20℃ to 65℃. 18650 battery cell,lithium battery suppliers improved the 18650 lithium rechargeable battery with its 18650 lithium cells features.
4. Its long cycle life with over 2000 cycles helps owners reduce replacement cost. MERITSUN's global stocking warehouses and distribution networks help insure your product is available when you need it most.
5. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection. providing the most reliable high drain battery,18650 battery manufacturers for customers always will help MERITSUN to stand out in the market.
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |

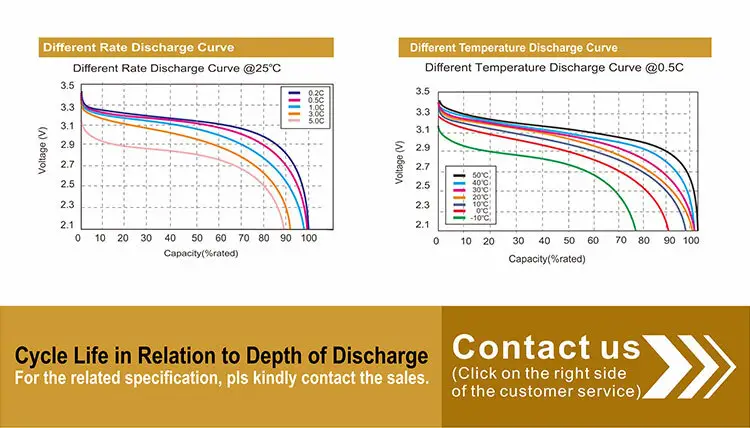

The Lithium Battery Cell Characteristic Curve , Please Refer To:

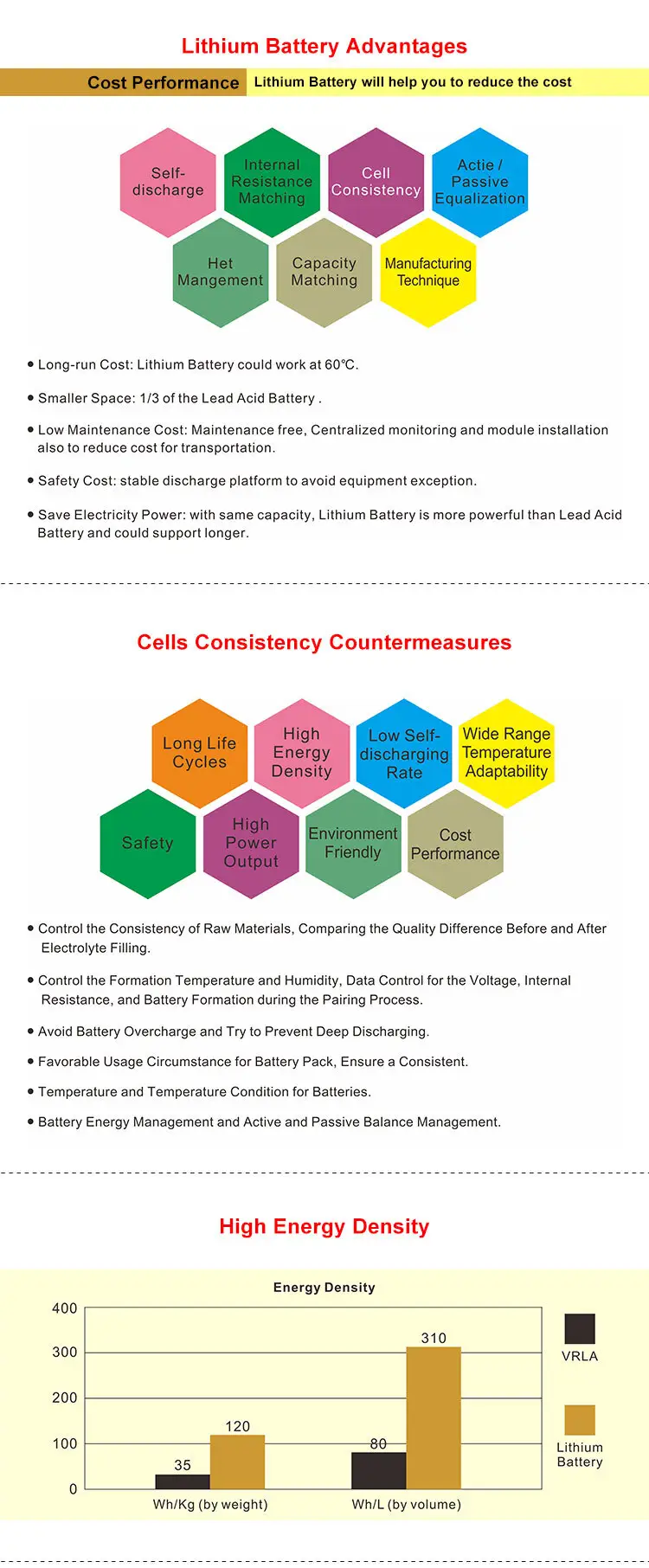

The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery

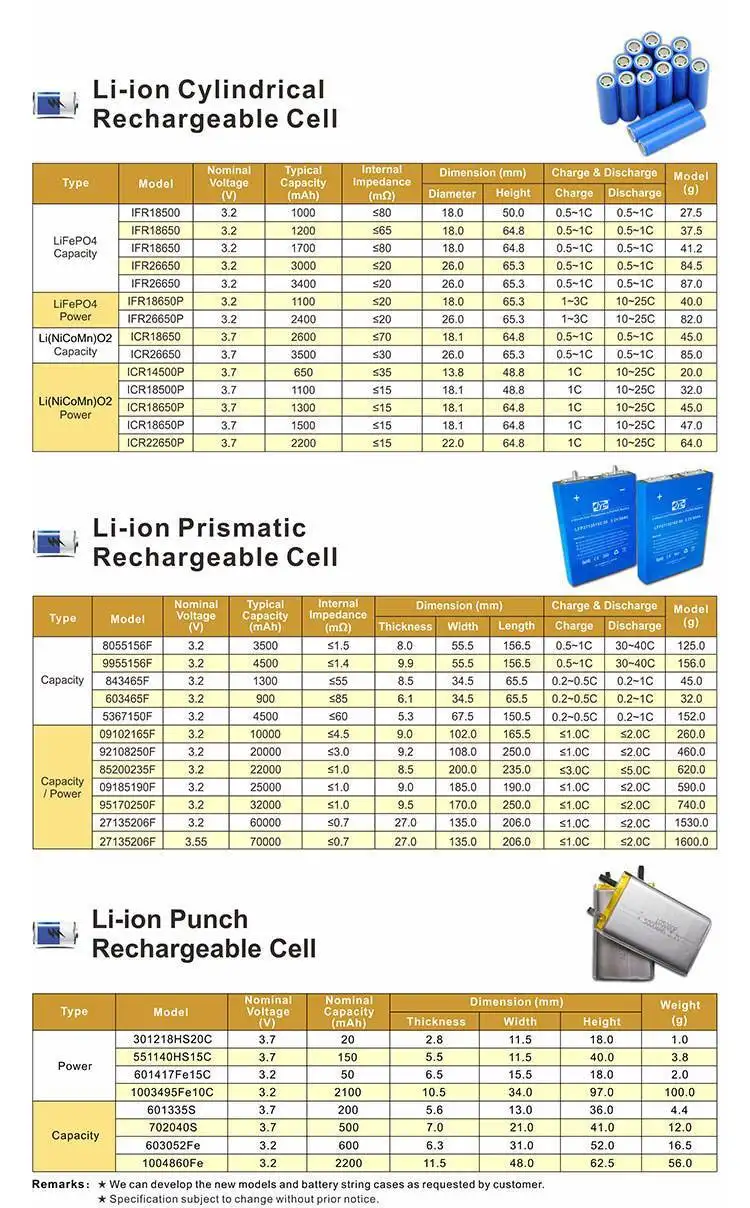

More Lithium Battery Cells Model Reference:
