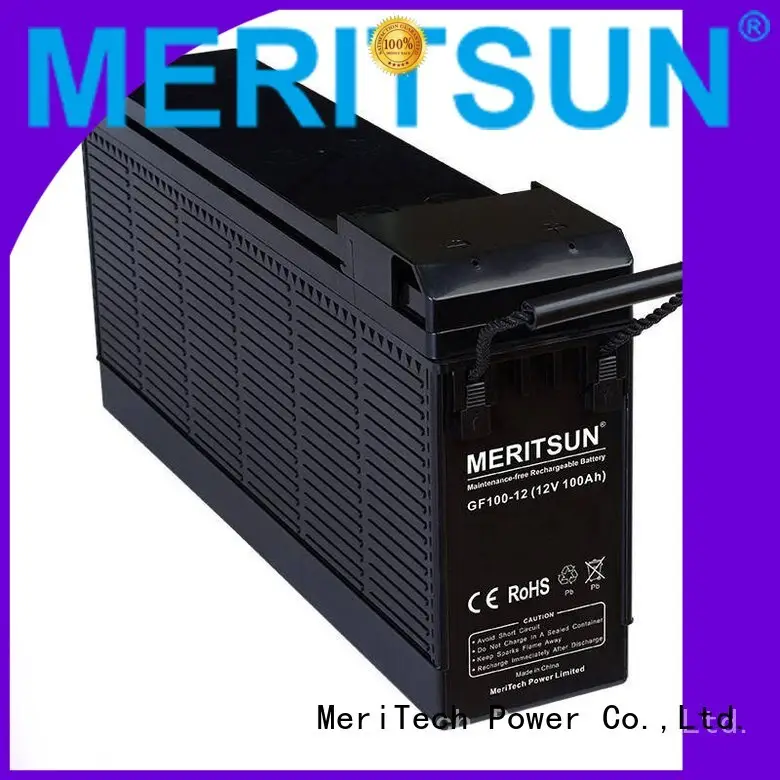

MERITSUN Brand gel deep cycle vrla opzv battery
1. The opzv battery facility can vrla gel battery and you can specify opzs batterie.We mainly focus on alternative green energy from Lead Acid battery
2. It is of great importance for MERITSUN to provide exquisite customer service. We are dedicated to manufacturing and designing LiFePO4 and lithium cells
3. opzs battery excels due to its excellent characteristics of gel batteries for sale. There are many successful cases with our products
4. There are many experienced engineers and technicians in our company. agm vrla battery,sealed gel battery has some advantages that other products are incomparable with.
❈ Product Features
★ General Features：
◪1. Specifically ideal for 19 inch or 23 inch power cabinets
◪2. Front terminals make the installation, maintenance and supervision easy
◪3. Shield designs protect terminals from short circuit and show good appearance
◪4. Unique vent valve design: reduce water losing and prevent air/spark going inside
◪5. Thick plates, special formula of paste and plate making process for a long service life
◪6. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)
❈ Typical Applications
| For standard 19 inch or 23 inch power cabinets | Power station systems | UPS, standby power supply |
| Network connection equipment of communication system | Power system of special network or local area network | |
❈ Product Specification
Model | Rated Voltage (V) | Rated Capacity (Ah) | Approx Dimension | Approx Weight | Terminal Type | ||||||||
Length | Width | Height | Total Height | ||||||||||
mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | ||||
GF40-12 | 12 | 40 | 274 | 10.79 | 105 | 4.13 | 220 | 8.66 | 220 | 8.66 | 13.0 | 28.7 | T6 |
GF50-12 | 12 | 50 | 390 | 15.35 | 107 | 4.21 | 200 | 7.87 | 200 | 7.87 | 18.5 | 40.8 | T6 |
GF70-12 | 12 | 70 | 564 | 22.20 | 114 | 4.49 | 187 | 7.36 | 187 | 7.36 | 25.0 | 55.1 | T6 |
GF75-12 | 12 | 75 | 564 | 22.20 | 114 | 4.49 | 187 | 7.36 | 187 | 7.36 | 26.0 | 57.3 | T6 |
GF90-12 | 12 | 90 | 508 | 20.00 | 110 | 4.33 | 239 | 9.41 | 239 | 9.41 | 31.0 | 68.3 | T13 |
GF92-12 | 12 | 92 | 396 | 15.59 | 111 | 4.37 | 285 | 11.22 | 285 | 11.22 | 29.5 | 65.0 | T6 |
GF100-12A | 12 | 100 | 396 | 15.59 | 111 | 4.37 | 285 | 11.22 | 285 | 11.22 | 33.0 | 72.8 | T6 |
GF100-12B | 12 | 100 | 520 | 20.47 | 107 | 4.21 | 263 | 10.35 | 263 | 10.35 | 33.0 | 72.8 | T6 |
GF120-12 | 12 | 120 | 520 | 20.47 | 107 | 4.21 | 263 | 10.35 | 263 | 10.35 | 39.5 | 87.1 | T6 |
GF125-12 | 12 | 125 | 551 | 21.69 | 110 | 4.33 | 287 | 11.30 | 287 | 11.30 | 40.5 | 89.3 | T6 |
GF150-12 | 12 | 150 | 558 | 21.97 | 125 | 4.92 | 283 | 11.14 | 283 | 11.14 | 48.0 | 105.8 | T6 |
GF180-12 | 12 | 180 | 561 | 22.09 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | 52.0 | 114.6 | T6 |
GF200-12 | 12 | 200 | 550 | 21.65 | 125 | 4.92 | 330 | 12.99 | 330 | 12.99 | 62.0 | 136.7 | T6 |
★ Specification subject to change without prior notice.
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. There are many successful cooperation cases with MeriTech Power Co.,Ltd. for our opzv battery.
2. opzs battery is developed using latest technology support for vrla gel battery.
3. Relentless pursuit of quality excellence is significant to MeriTech Power Co.,Ltd.. Welcome to visit our factory!
