MERITSUN Brand flooded vrla opzv battery manufacture
1. The design of opzv battery has been a focus in the field to become more competitive. Our products are certified to ISO, CE, ROHS, TLC, TUV, IEC, and so on
2. MeriTech Power Co.,Ltd.'s large scale and respected brand for opzs battery, give it a big competitive advantage. We integrate battery packs for Green Energy Storage Systems
3. MeriTech Power Co.,Ltd. achieves this by total involvement of our people, continuous improvement and innovations. Focusing on smart energy project, we are an innovation pioneer
| For standard 19 inch or 23 inch power cabinets | Power station systems | UPS, standby power supply |
| Network connection equipment of communication system | Power system of special network or local area network | |
Model | Rated Voltage (V) | Rated Capacity (Ah) | Approx Dimension | Approx Weight | Terminal Type | ||||||||
Length | Width | Height | Total Height | ||||||||||
mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | ||||
GF40-12 | 12 | 40 | 274 | 10.79 | 105 | 4.13 | 220 | 8.66 | 220 | 8.66 | 13.0 | 28.7 | T6 |
GF50-12 | 12 | 50 | 390 | 15.35 | 107 | 4.21 | 200 | 7.87 | 200 | 7.87 | 18.5 | 40.8 | T6 |
GF70-12 | 12 | 70 | 564 | 22.20 | 114 | 4.49 | 187 | 7.36 | 187 | 7.36 | 25.0 | 55.1 | T6 |
GF75-12 | 12 | 75 | 564 | 22.20 | 114 | 4.49 | 187 | 7.36 | 187 | 7.36 | 26.0 | 57.3 | T6 |
GF90-12 | 12 | 90 | 508 | 20.00 | 110 | 4.33 | 239 | 9.41 | 239 | 9.41 | 31.0 | 68.3 | T13 |
GF92-12 | 12 | 92 | 396 | 15.59 | 111 | 4.37 | 285 | 11.22 | 285 | 11.22 | 29.5 | 65.0 | T6 |

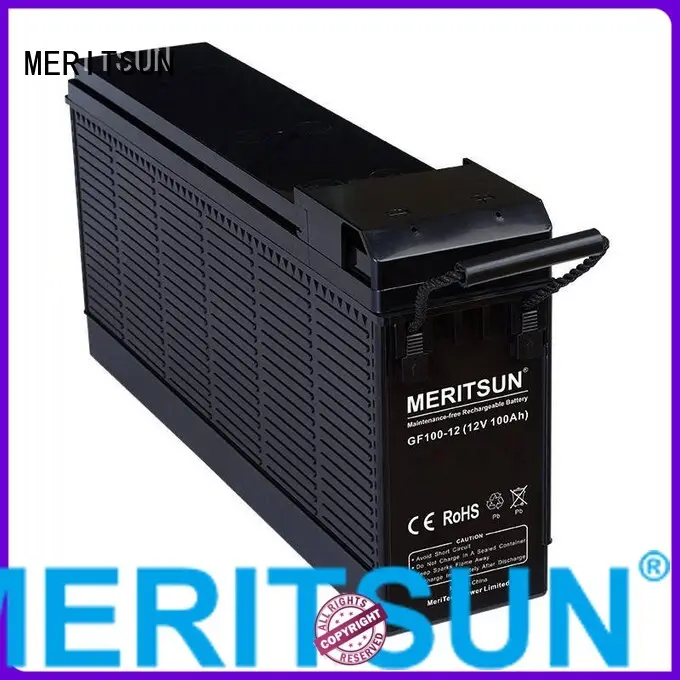

GF100-12A | 12 | 100 | 396 | 15.59 | 111 | 4.37 | 285 | 11.22 | 285 | 11.22 | 33.0 | 72.8 | T6 |
GF100-12B | 12 | 100 | 520 | 20.47 | 107 | 4.21 | 263 | 10.35 | 263 | 10.35 | 33.0 | 72.8 | T6 |
GF120-12 | 12 | 120 | 520 | 20.47 | 107 | 4.21 | 263 | 10.35 | 263 | 10.35 | 39.5 | 87.1 | T6 |
GF125-12 | 12 | 125 | 551 | 21.69 | 110 | 4.33 | 287 | 11.30 | 287 | 11.30 | 40.5 | 89.3 | T6 |
GF150-12 | 12 | 150 | 558 | 21.97 | 125 | 4.92 | 283 | 11.14 | 283 | 11.14 | 48.0 | 105.8 | T6 |
GF180-12 | 12 | 180 | 561 | 22.09 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | 52.0 | 114.6 | T6 |
GF200-12 | 12 | 200 | 550 | 21.65 | 125 | 4.92 | 330 | 12.99 | 330 | 12.99 | 62.0 | 136.7 | T6 |
❈ Product Features
★ General Features：
◪1. Specifically ideal for 19 inch or 23 inch power cabinets
◪2. Front terminals make the installation, maintenance and supervision easy
◪3. Shield designs protect terminals from short circuit and show good appearance
◪4. Unique vent valve design: reduce water losing and prevent air/spark going inside
◪5. Thick plates, special formula of paste and plate making process for a long service life
◪6. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)
❈ Typical Applications
❈ Product Specification
★ Specification subject to change without prior notice.
Please fill in the detailed requirements in the "
Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is an globally advanced company in the field of opzv battery. - Our professional QC team contributes to the quality of opzs battery a lot.
2. MERITSUN has put a lot of effort into producing high quality agm vrla battery.
3. For the fabrication of these products, our professionals make use of high grade raw material and cutting-edge technology in complete compliance with international quality standards. - MERITSUN is confident to provide you the most comprehensive services and products of high quality. Please contact us!
