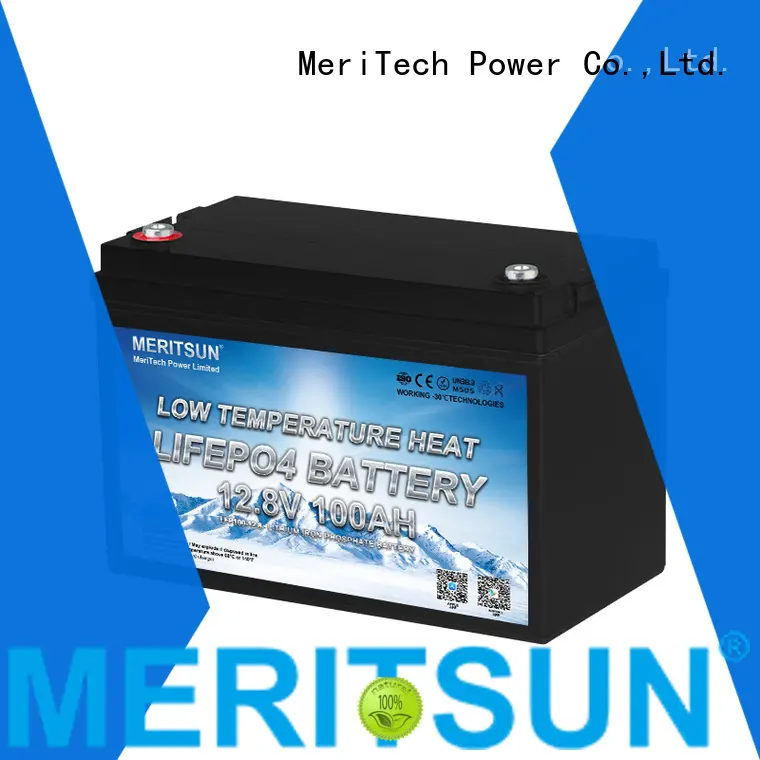

MERITSUN best low temperature lithium ion battery for business for house
Model:
LFP200-12.8, Bluetooth Battery
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Video Display
1. MERITSUN lithium battery at low temperature is tested under a completely advanced testing environment, which allows it to be compatible with both domestic and international lighting standard in the market. The product is produced under the principle of environmental protection
2. Its benefits are self-evident. Manufacturers will see its effectiveness in reducing human capital costs and energy expenditures. Its long cycle life with over 2000 cycles helps owners reduce replacement cost
3. This product has an outstanding quality that exceeds industry standards. The charge rate of the product is strong, shortening the charge time efficiently
4. Products have passed the international quality certification, to ensure high quality products. The product is characterized by thermal performance
5. This product has excellent performance and long service life. It can be used within a wider temperature range from -20℃ to 65℃
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 100Ah | |||||
| Energy | 1280Wh | |||||
| Internal Resistance | ≤150mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 15.6V±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | IP56 | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 335*170*210mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | ||||||
Company Features
1. MeriTech Power Co.,Ltd. has evolved into one of the most famous manufacturers and exporters of lithium battery at low temperature . We have been widely recognized in the industry.
2. Our low temperature lithium ion battery is easily operated and need no additional tools.
3. We will guarantee that all of our business activities comply with legal stipulations, especially the production sector. We will carry out an environmental risk assessment to make sure the negative effects on the environment are controlled to the low range.
