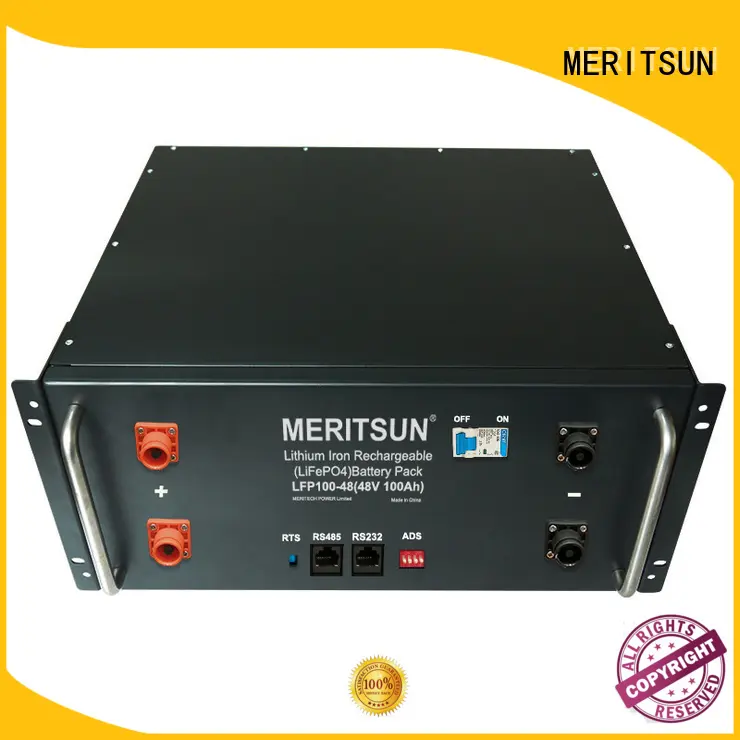

MERITSUN battery power storage factory direct supply for commercial
Model:
LFP100-48
Rated Voltage (V):
48V
Rated Capacity (Ah):
100AH
Supply Ability:
5000 Pieces per Month
MOQ:
1
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
442*410*220mm
Approx Weight (Kg):
60kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Application Scope
Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system.'s battery manufacturing companies can be applied to different fields.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
1. MERITSUN energy storage solutions is of flexible design. It can be designed for front or back projection, the more common being front projection systems, which have the image source situated on the same side of the screen as the audience.
2. The product has withstood the tests of our professional QC team as well as the authoritative third party.
3. MeriTech Power Co.,Ltd. seeks to be a customer-driven battery power storage supplier.
4. Customers speak highly of the service of MERITSUN.
Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) | ||||
| Energy | 4800Wh | |||||
| Internal Resistance | ≤80mΩ | |||||
| Cycle Life | ≥4000 cycles @1.0C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Months Self Discharge | Charge Voltage | 54.0±0.1V | ||||
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A (Customizable) | |||||
| Max. Charge Current | 50A (Customizable) | |||||
| Charge Cut-off Voltage | 57.6±0.2V | |||||
| Standard Discharge | Continuous Current | 20A (Customizable) | ||||
| Max continuous discharge current | 50A (Customizable) | |||||
| Discharge Cut-off Voltage | 37.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |||||
Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P | ||||
| Shell material | iron | |||||
| Dimensions | 442*400*221mm | |||||
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |||||
| Gravimetric specific energy | 80WH/KG | |||||
Technology info
/ For more details, please contact us！
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Company Features
1. MeriTech Power Co.,Ltd. emphasizes on the quality and service while cooperating with partners.
2. MERITSUN has successfully established the complete system to ensure the quality of battery power storage.
3. We assume responsibility to safeguard our living and working communities. We promise never to damage and desolate the environment around due to draining and waste dumping and pollution. As a cooperate that committed to sustainable development, we promote social interaction and protect the environment at all our locations. We are marching forwards a lower carbon footprint production model. We'll do materials recycling work, engage in waste management, and actively conserve energy or resources.
