MERITSUN battery power storage customized for commercial
1. MERITSUN lithium ion battery for solar storage has been tested for guaranteed safety. It has passed China's CCEE, GSG and CEMC, Japan's S-MARK and VCCI, Germany's VDE, and Canada's CSA. The product is produced under the principle of environmental protection
2. MeriTech Power Co.,Ltd. is able to complete all production tasks in a quick and perfect way. The product with a long service life can be used for more than 8 years
3. The product is widely recommended and treasured owing to their superior quality and lasting performance. It can be widely applied in diverse areas ranging from small appliances and IT devices
4. battery power storage provides high reliability and superior performance at a low cost. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
Electrical Characteristics | Model | 48V 200Ah (LiFePO4 Lthium iron Phosphate Battery) | |||||
| Energy | 9600Wh | ||||||
| Internal Resistance | ≤50mΩ | ||||||
| Cycle Life | ≥4000 cycles @1.0C 100%DOD | ||||||
| Months Self Discharge | <3% | ||||||
Standard Charge | Charge Voltage | 56.8~57.6V | |||||
| Charge Mode | 0.2C to 57.6V, then 57.6V,charge current to 0.02C (CC/CV) | ||||||
| Charger Current | ≤100A | ||||||
| Max. Charge Current | 100A | ||||||
| Charge Cut-off Voltage | 57.6±0.2V | ||||||
| Standard Discharge | Continuous Current | 40A | |||||
| Max continuous discharge current | 100A | ||||||
| Discharge Cut-off Voltage | 42.5~45.5V | ||||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity | |||||
| Discharge Temperature | -20 ℃ to 55 ℃ (-4℉ to 131℉) @60±25% Relative Humidity | ||||||
| Storage Temperature | -10℃ to 65 ℃ (14℉ to 149℉) @60±25% Relative Humidity | ||||||
| Mechanical | Cell & Method | BT-P48100X-6 1S2P | |||||
| Shell material | iron | ||||||
| Dimensions | 442*450*250mm | ||||||
| Weight (lbs./kg.) | Approx: 90kg | ||||||
| Gravimetric specific energy | 101WH/KG | ||||||
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)

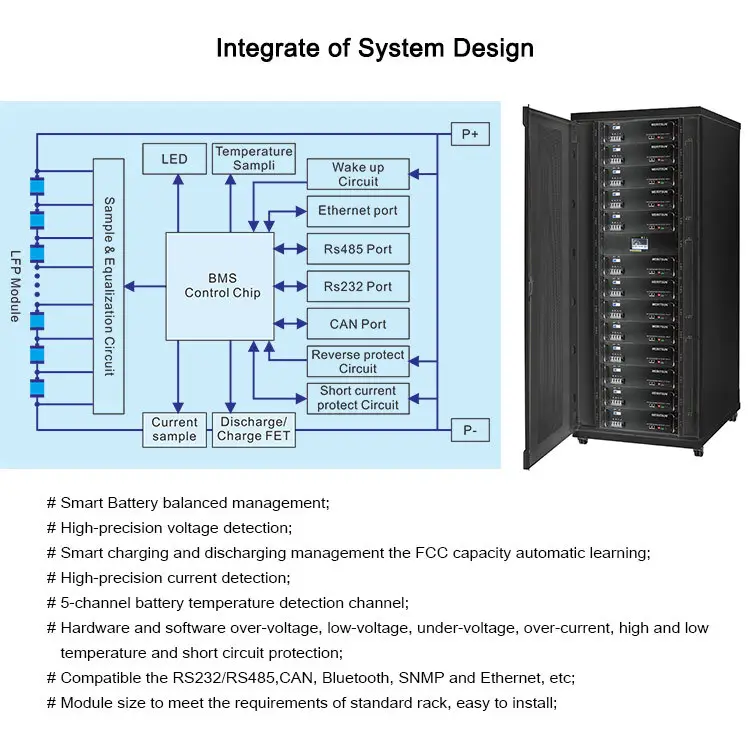

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
