Company Advantages1. MERITSUN home power battery will be inspected comprehensively. The battery cells will be tested in different operation environments, including fault condition, high-pressure condition, or combustion condition to check its safety performance. The product is designed with a protection circuit which can totally ensure the safety of users
2. MeriTech Power Co.,Ltd. will make full preparation for outer package of house power battery . Strong reliability is one of the features of the product
3. house power battery is manufactured based on superior materials. It has good corrosion resistance, heat resistance, explosion-proof and sealing performance. By virtue of built-in battery pack, it has large capacity, high power, and excellent charge and discharge performance.
4. Made from high-quality materials, house power battery has strong corrosion resistance, low contact resistance with active materials, good deep discharge performance and good charge acceptance. It is a durable and superior product that is widely favored by customers.
5. house power battery is manufactured based on excellent materials and advanced technology. It has superior corrosion resistance and excellent electrical conductivity, which not only enhances cycle durability, but also greatly reduces power consumption.

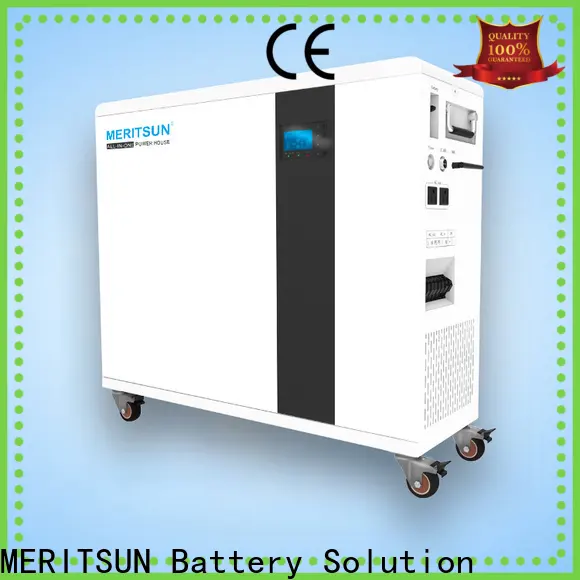

![MERITSUN all-in-one house power battery factory for house 11]()
Feature
1.Built in Inverter and Smart BMS.Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
![MERITSUN all-in-one house power battery factory for house 12]()
| Models | AI 3K
| AI 5K |
| Battery |
| Nominal Voltage [V] | 51.2 |
| Voltage Range [V] | 44.8~57.6 |
| Capacity | 3kWH | 5kWH |
| Max.charge rate | 0.5C | 0.5C |
| Battery Type | LiFePO Battery |
| AC Output |
|
| Rated Power | 3000VA | 5000VA |
| Overload Capacity | 120% (5s) |
200%（100ms）
|
| Output Voltage | 230Vac±2% |
| Output Current | 13.7 A | 22 A |
| Rated Frequency | 50/60Hz |
| VTHD | 3% |
| Transfer Time | ＜10ms |
| Output Wave | Pure Sine Wave |
| Output Type | Multi-purpose Socket×2 |
| AC Input Voltage Range | 170~280Vac |
| AC Input Frequency | 50Hz/60Hz |
Max AC Charge Current(Battery) | 40A | 60A |
| PV Input |
Max. PV Power(Recommended) | 3000w | 4000w |
| Max. PV Voltage | 145V
|
| MPPT Range | 60V~115V |
Max PV Charge Current(Battery) | 60A | 80A |
| Operating Conditions |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -15℃~60℃ |
| Humidity | 5%~95% |
| Cooling Strategy | Fan |
| Weight [kg] | 42 | 60 |
| Dimension [W x H x D, mm] | 700*580*230 | 700*580*230 |
| Enclosure Protection Rating | IP31 |
| Communication | Wifi(Remote) |
| Warranty | 5 years |
| Work Mode |
| Solar First | Solar and UPS |
| Utility First | UPS and Backup |
| Solar—Battery—Utility | Load Match Mode |
![MERITSUN all-in-one house power battery factory for house 13]()
![MERITSUN all-in-one house power battery factory for house 14]()
![MERITSUN all-in-one house power battery factory for house 15]()
![MERITSUN all-in-one house power battery factory for house 16]()
![MERITSUN all-in-one house power battery factory for house 17]()
![MERITSUN all-in-one house power battery factory for house 18]()
![MERITSUN all-in-one house power battery factory for house 19]()
![MERITSUN all-in-one house power battery factory for house 20]()
Company Features1. MeriTech Power Co.,Ltd. is located in one of the planet's most productive house power battery areas.
2. We have professional personnel engaged in manufacturing. These in-house members are responsible for design, manufacturing, testing and quality control for years.
3. The service idea of home power battery in MeriTech Power Co.,Ltd. emphasize on battery for home use . Get quote!
