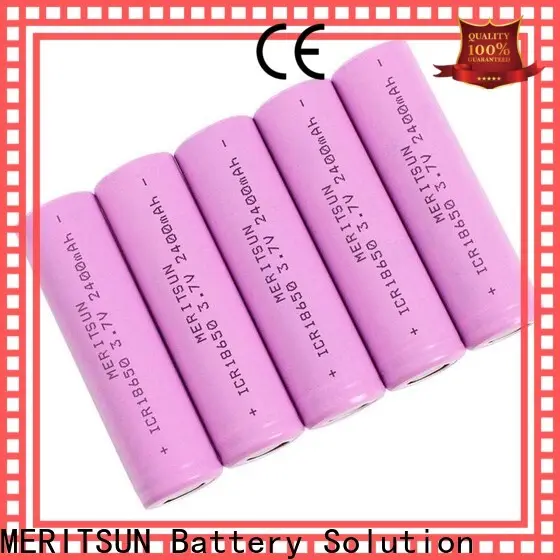

MERITSUN 3.7 volt lithium ion battery customized for flashlight
Model:
ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. 3.7 volt lithium ion battery is manufactured based on advanced technology. Unique in structural design, it can effectively prevent electrolyte splashing in the battery to make it reliable in safety.
2. MeriTech Power Co.,Ltd.'s technical support experts are ready to meet the various requirements of our customers. It can be widely applied in diverse areas ranging from small appliances and IT devices
3. The product is strictly checked by the quality inspection department. From the raw material to the shipment process, the defective product is not allowed to enter the market. Strong reliability is one of the features of the product
Company Features
1. We are experienced in manufacturing 3.7 volt lithium ion battery . MeriTech Power Co.,Ltd. is equipped with sophisticated testing and testing equipment.
2. First-class equipment, production technology and business management guarantee the first-class quality of MERITSUN.
3. The factory always maintains a production facility that is environmentally friendly. These facilities, introduced from developed countries, have high efficiency in reducing resources waste and pollution. MeriTech Power Co.,Ltd. is willing to join hands with all parties for further development in 18650 battery cell field. Ask online!
1. 3.7 volt lithium ion battery is manufactured based on advanced technology. Unique in structural design, it can effectively prevent electrolyte splashing in the battery to make it reliable in safety.
2. MeriTech Power Co.,Ltd.'s technical support experts are ready to meet the various requirements of our customers. It can be widely applied in diverse areas ranging from small appliances and IT devices
3. The product is strictly checked by the quality inspection department. From the raw material to the shipment process, the defective product is not allowed to enter the market. Strong reliability is one of the features of the product
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. We are experienced in manufacturing 3.7 volt lithium ion battery . MeriTech Power Co.,Ltd. is equipped with sophisticated testing and testing equipment.
2. First-class equipment, production technology and business management guarantee the first-class quality of MERITSUN.
3. The factory always maintains a production facility that is environmentally friendly. These facilities, introduced from developed countries, have high efficiency in reducing resources waste and pollution. MeriTech Power Co.,Ltd. is willing to join hands with all parties for further development in 18650 battery cell field. Ask online!
