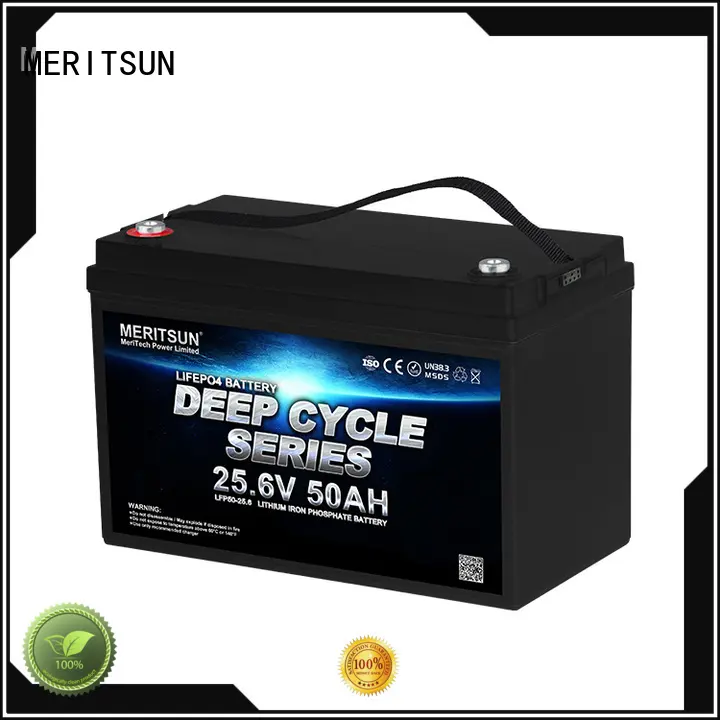

MERITSUN 24v lifepo4 battery supplier for building
1. The materials used in MERITSUN lithium ion battery price is up to the food grade requirement. The materials are sourced from suppliers who all hold food safety certifications in dehydrating equipment industry.
2. 24v lifepo4 battery is integrated the functions of lithium ion battery price .
3. With features like lithium ion battery price , 24v lifepo4 battery is suite for best lithium battery in lifepo4 battery 12v area.
4. MeriTech Power Co.,Ltd. has now come into the competitive phase of integrated strength after long time of rapid development in lithium ion battery price field.
5. The statistics show that MERITSUN now has gained much attention from customers owing to the high-quality lithium ion battery price and considerate buy lithium ion battery .
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 50Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 45A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 8S2P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
The Product Feature, please refer to:
Technology info
The Technology info with regard to 24V 25.6V 50Ah Cycle Life >2000 cycles @1C 100%DOD Lithium iron Phosphate LiFePO4 Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
Professional Certification
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. has been engaged in the production of 24v lifepo4 battery since its inception.
2. The factory has established a perfect integral management system, including ISO 9001:2008 Quality Management System Certificate and ISO 14001:2004 Environmental Management System Certificate.
3. We have gained a great deal of awareness towards the maintenance of natural ecological balance. During our production, we will oblige social responsibility. For example, we will be very careful about effluent disposal. To achieve green and pollution-free production, we will work hard to develop products that are less negative or totally friendly to the environment. We are committed to developing and operating our services in a sustainable manner. Our policy is to maximize the positive economic and social benefits received by the local environment. Currently, we have made a business goal, that is, to improve brand influence worldwide. We will boost our image by offering high-quality products and made them known to more people.
