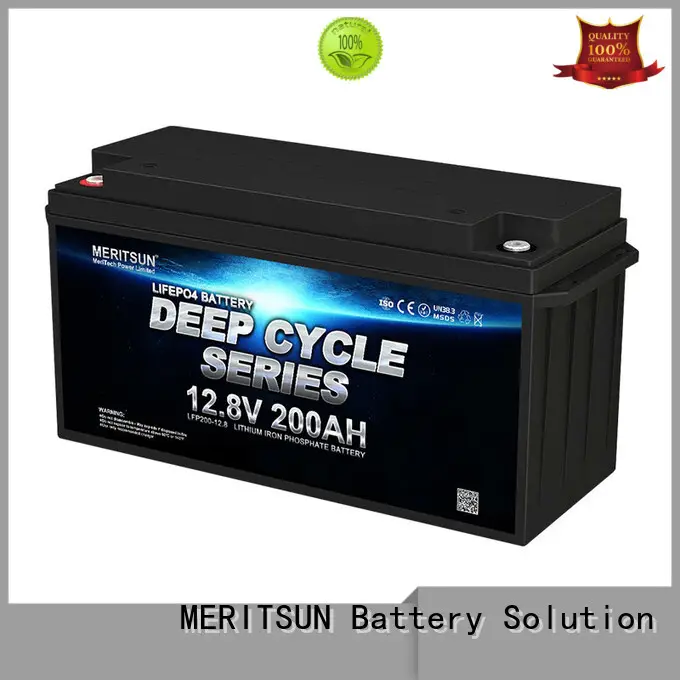

long cycle life lithium iron phosphate battery series for house
- Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. ensures that consumers' legal rights can be protected effectively by establishing a comprehensive customer service system. We are dedicated to providing consumers with services including information consultation, product delivery, product return, and replacement and so on.
1. MERITSUN lifepo4 battery manufacturers undergoes rigorous quality control procedures, including inspection of flaws and flaws in the fabric, ensuring accurate color tones and testing the softness of the final product.
2. The product features high specific energy. The electrode materials can release as much as electricity when they have electrode reaction.
3. It is formidable that unqualified lithium iron phosphate battery are sold to clients in MERITSUN.
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤180mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 60A | |
Max. Charge Current | 80A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 60A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 8V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 4S20P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*170*245mm | |
Weight (lbs./kg.) | 25kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is a lithium iron phosphate battery manufacturer that integrates lifepo4 battery manufacturers R& D, manufacture and sales.
2. Our company has excellent employees. They are knowledgeable and skilled in their respective areas of expertise.
3. We think positively about sustainable development. We put active efforts on reducing production waste, increasing resource productivity, and optimizing material usage. We think highly of sustainability. During our production, we will pay close attention to the overall production waste and gas emissions. Our research and development section is open to clients. We are willing to share new technology and work with clients together to upgrade their products and developing new ones together. Call! Maintaining production and logistics in-house allows us to provide customers with significantly shorter project lead times. In many cases, we can meet or beat delivery times of other domestic providers, despite international production and shipping times. Call!
