long cycle life lifepo4 battery 48v manufacturer for building
1. The production of MERITSUN 24 volt lifepo4 battery pack adopts reasonable improvements. The charge rate of the product is strong, shortening the charge time efficiently
2. MeriTech Power Co.,Ltd. pays close attention to customer needs and service experience. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
3. The product has the advantage of low emissions. RTM production technology offers an important environmental advantage for this product. It offers a cleaner environment since the styrene emission is much lower. It is produced in strict accordance with the UL standard

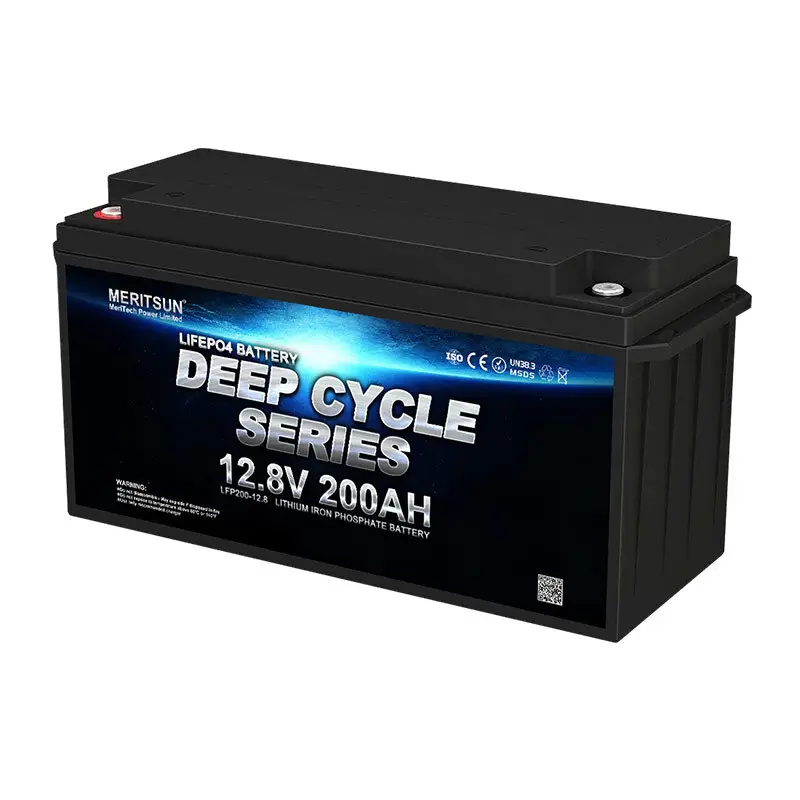

Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤180mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 60A | |
Max. Charge Current | 80A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 60A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 8V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 4S20P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*170*245mm | |
Weight (lbs./kg.) | 25kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
The Product Feature, please refer to:
Technology info/ For more details, please contact us！
The Technology info with regard to 12V 200Ah LiFePO4 Lipo Li-ion Lithium ion Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)

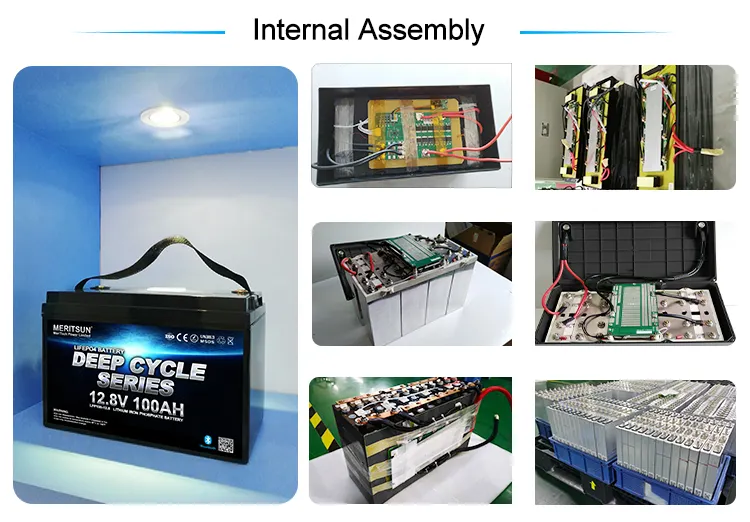

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
Professional Certification
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is widely appraised by its high quality lifepo4 battery 48v . MeriTech Power Co.,Ltd. has a high-quality professional production team.
2. MeriTech Power Co.,Ltd. has advanced testing equipment and a strong R&D team.
3. MeriTech Power Co.,Ltd. has international standard of automated production lines for best lithium battery. 24 volt lifepo4 battery pack is an important action as good customer service for MeriTech Power Co.,Ltd.. Inquire now!
