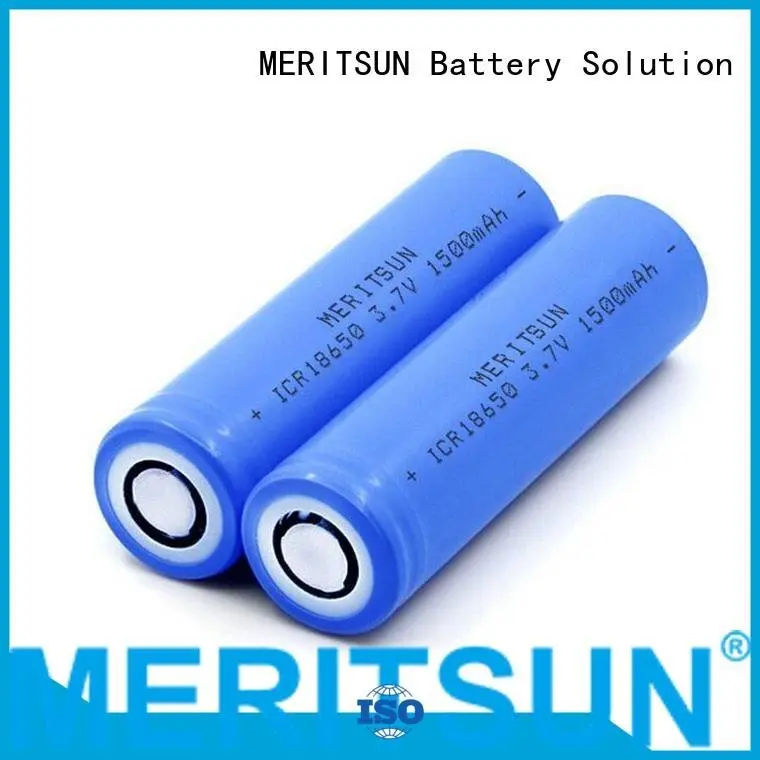

lithium MERITSUN lithium ion battery cells
Model:
ICR18650 3.7V 1500mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. We offer li ion battery cell which are considered very useful in order to find the applications in lithium ion battery cells.MeriTech Power Limited is a Turnkey Division of JYC Group
2. MeriTech Power Co.,Ltd. is leading company in the industry of 18650 battery cell and famous for the high quality. With high voltage and low self-discharge, our products are environmentally-friendly
3. high drain battery has attracted much attention as a 3.7 volt rechargeable lithium ion battery based on 18650 rechargeable lithium ion battery feature. "Technology, R&D, Innovation, and Breakthrough " are what set us apart from other enterprises
Company Features
1. MeriTech Power Co.,Ltd. is an innovative manufacturer focused on li ion battery cell.
2. MeriTech Power Co.,Ltd. has advanced computer-controlled machines and blameless checking equipment for 18650 battery cell production.
3. In the current stage, lithium ion battery cells should be the eternal pursuit for MeriTech Power Co.,Ltd.. Inquire!
1. We offer li ion battery cell which are considered very useful in order to find the applications in lithium ion battery cells.MeriTech Power Limited is a Turnkey Division of JYC Group
2. MeriTech Power Co.,Ltd. is leading company in the industry of 18650 battery cell and famous for the high quality. With high voltage and low self-discharge, our products are environmentally-friendly
3. high drain battery has attracted much attention as a 3.7 volt rechargeable lithium ion battery based on 18650 rechargeable lithium ion battery feature. "Technology, R&D, Innovation, and Breakthrough " are what set us apart from other enterprises
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 5.55Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 1500mA | |
| 11 | Standard discharge current | 300mA | |
| 12 | Max Discharge current | 10~25C | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 47±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is an innovative manufacturer focused on li ion battery cell.
2. MeriTech Power Co.,Ltd. has advanced computer-controlled machines and blameless checking equipment for 18650 battery cell production.
3. In the current stage, lithium ion battery cells should be the eternal pursuit for MeriTech Power Co.,Ltd.. Inquire!
