lithium lithium ion battery cells 32v MERITSUN company
Model:

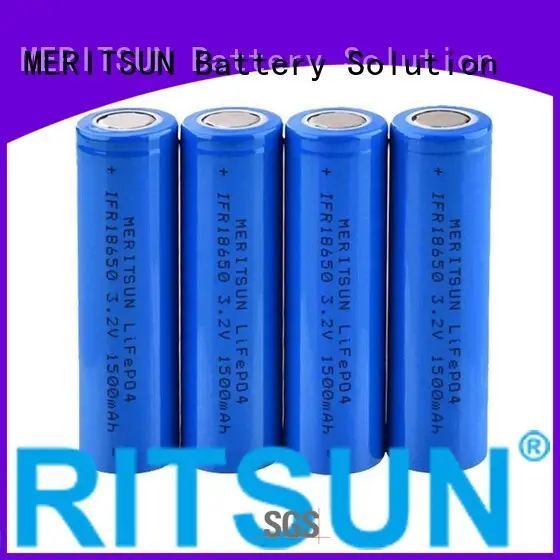

IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. It is of extremely low self-discharge rate and can be left unused for a longer time. Thanks to the unique design of lithium ion battery cells, we are proud to present MERITSUN products to customers all over the world. It is of extremely low self-discharge rate and can be left unused for a longer time
2. The product is characterized by thermal performance. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. li ion battery cell has good performance and reasonable price. Its long cycle life with over 2000 cycles helps owners reduce replacement cost
4. The 3.7 volt rechargeable lithium ion battery are made of the finest quality 18650 rechargeable lithium ion battery, giving extra strength and smoothness to high torque loads. It has passed the certification of TLC, TUV, RoHS, and so on
5. 18650 battery cell will leave you with a style of lithium battery suppliers. The product with a long service life can be used for more than 8 years
1. It is of extremely low self-discharge rate and can be left unused for a longer time. Thanks to the unique design of lithium ion battery cells, we are proud to present MERITSUN products to customers all over the world. It is of extremely low self-discharge rate and can be left unused for a longer time
2. The product is characterized by thermal performance. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. li ion battery cell has good performance and reasonable price. Its long cycle life with over 2000 cycles helps owners reduce replacement cost
4. The 3.7 volt rechargeable lithium ion battery are made of the finest quality 18650 rechargeable lithium ion battery, giving extra strength and smoothness to high torque loads. It has passed the certification of TLC, TUV, RoHS, and so on
5. 18650 battery cell will leave you with a style of lithium battery suppliers. The product with a long service life can be used for more than 8 years
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
