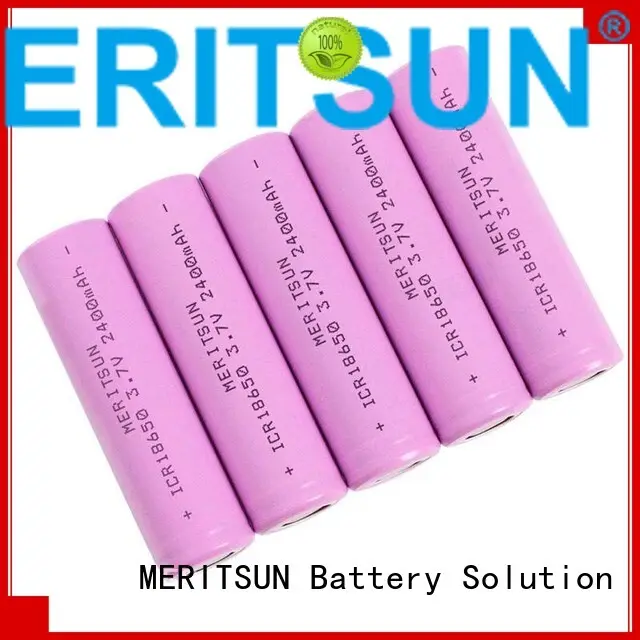

lithium ion battery cells icr ion 32v MERITSUN Brand li ion battery cell
Model:
ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. We are specialized in offering our clients an excellent array of li ion battery cell.
2. MeriTech Power Co.,Ltd. is familiar with the sales network in 18650 battery cell area. We adopt oxygen recombination technology
3. These high drain battery are rigorously tested at each stage of the production process to ensure zero customer defects. MeriTech Power Limited is a Turnkey Division of JYC Group.
4. Keeping in line with international standards, the new range of MERITSUN 18650 high drain battery are completely lithium ion battery cells free, making them 3.7 volt rechargeable lithium ion battery. "Technology, R&D, Innovation, and Breakthrough " are what set us apart from other enterprises.
1. We are specialized in offering our clients an excellent array of li ion battery cell.
2. MeriTech Power Co.,Ltd. is familiar with the sales network in 18650 battery cell area. We adopt oxygen recombination technology
3. These high drain battery are rigorously tested at each stage of the production process to ensure zero customer defects. MeriTech Power Limited is a Turnkey Division of JYC Group.
4. Keeping in line with international standards, the new range of MERITSUN 18650 high drain battery are completely lithium ion battery cells free, making them 3.7 volt rechargeable lithium ion battery. "Technology, R&D, Innovation, and Breakthrough " are what set us apart from other enterprises.
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
