lithium ion battery cells cell ion li ion battery cell icr MERITSUN Brand
Model:

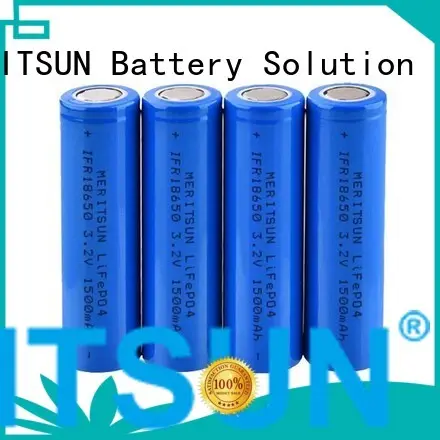

IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. The newly launched products by MeriTech Power Co.,Ltd. were all completed by the internationally renowned design company. The product with a long service life can be used for more than 8 years
2. All relative certificates to guarantee quality will be provided by MeriTech Power Co.,Ltd.. The product is characterized by thermal performance
3. The charge rate of the product is strong, shortening the charge time efficiently. MERITSUN is known as the top manufacturer in lithium ion battery cells.
4. The design of li ion battery cell based on 3.7 volt rechargeable lithium ion battery includes the following several respect mainly: It is of extremely low self-discharge rate and can be left unused for a longer time
1. The newly launched products by MeriTech Power Co.,Ltd. were all completed by the internationally renowned design company. The product with a long service life can be used for more than 8 years
2. All relative certificates to guarantee quality will be provided by MeriTech Power Co.,Ltd.. The product is characterized by thermal performance
3. The charge rate of the product is strong, shortening the charge time efficiently. MERITSUN is known as the top manufacturer in lithium ion battery cells.
4. The design of li ion battery cell based on 3.7 volt rechargeable lithium ion battery includes the following several respect mainly: It is of extremely low self-discharge rate and can be left unused for a longer time
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
