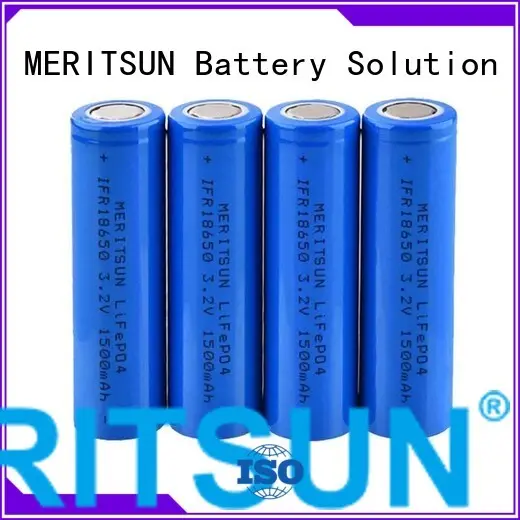

lithium ion battery cells 1500mah MERITSUN Brand li ion battery cell
Model:
IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. With integrated solutions services in energy storage application, we reach the demands of the smart & green energy era. MERITSUN factory has established itself as a leading manufacturer, trader, and manufacture of lithium ion battery cells in the market.
2. We use high purity raw material to ensure low self discharge rate. MERITSUN is full of vitality, energy and warrior spirit.
3. li ion battery cell's design uses 3.7 volt rechargeable lithium ion battery concept. We mainly focus on alternative green energy from Lead Acid battery
4. Established in 1999, we have 18 years experience in energy power industry. Our products are designed accordingly to the need of the customer, still keeping the roots of the creative process embedded in the artisan tradition.
![]()
![]()
1. With integrated solutions services in energy storage application, we reach the demands of the smart & green energy era. MERITSUN factory has established itself as a leading manufacturer, trader, and manufacture of lithium ion battery cells in the market.
2. We use high purity raw material to ensure low self discharge rate. MERITSUN is full of vitality, energy and warrior spirit.
3. li ion battery cell's design uses 3.7 volt rechargeable lithium ion battery concept. We mainly focus on alternative green energy from Lead Acid battery
4. Established in 1999, we have 18 years experience in energy power industry. Our products are designed accordingly to the need of the customer, still keeping the roots of the creative process embedded in the artisan tradition.
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
