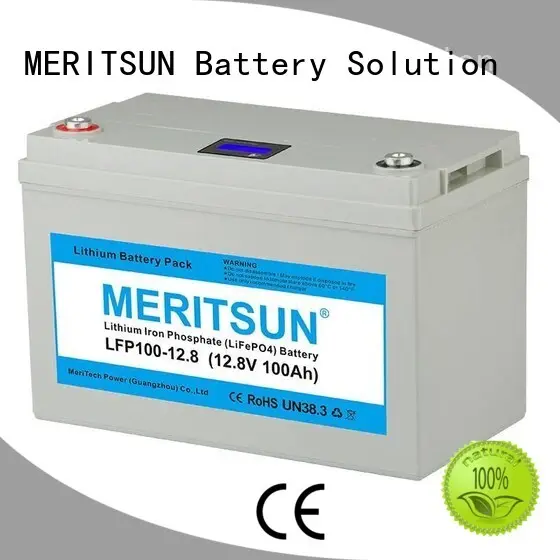

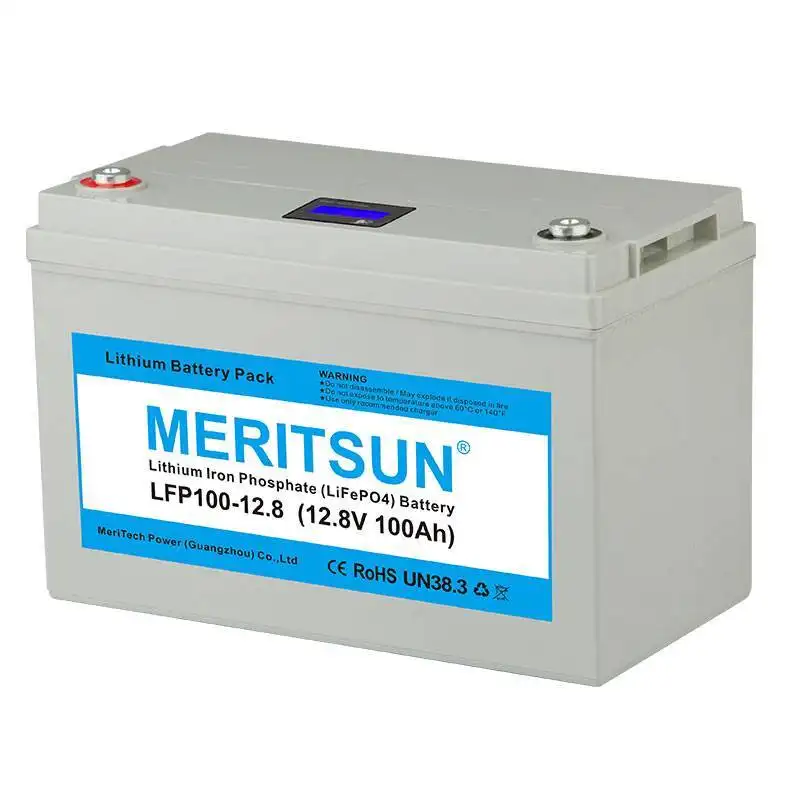

lithium battery manufacturers phosphate for building MERITSUN
1. The production model of MERITSUN lifepo4 battery price relies on the concept of modern operations.
2. The product features high specific energy. The electrode materials can release as much as electricity when they have electrode reaction.
3. This product has a high-rate discharge capability. The resistance of contact face between electrodes and electrolyte is lowered to a certain level, which enhances its electric performance.
4. Its unique design helps to intrigue customers enough to pick up items, take a closer look, read a bit about the item and determine its value.
5. Thanks to its huge sealing property, the product is able to prevent the escape of air, fluid, or any other leakage.
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >2000 cycles @1C 100%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
LCD (optional) | Yes |
The Product Feature, please refer to:
OBM / OEM / ODM Service

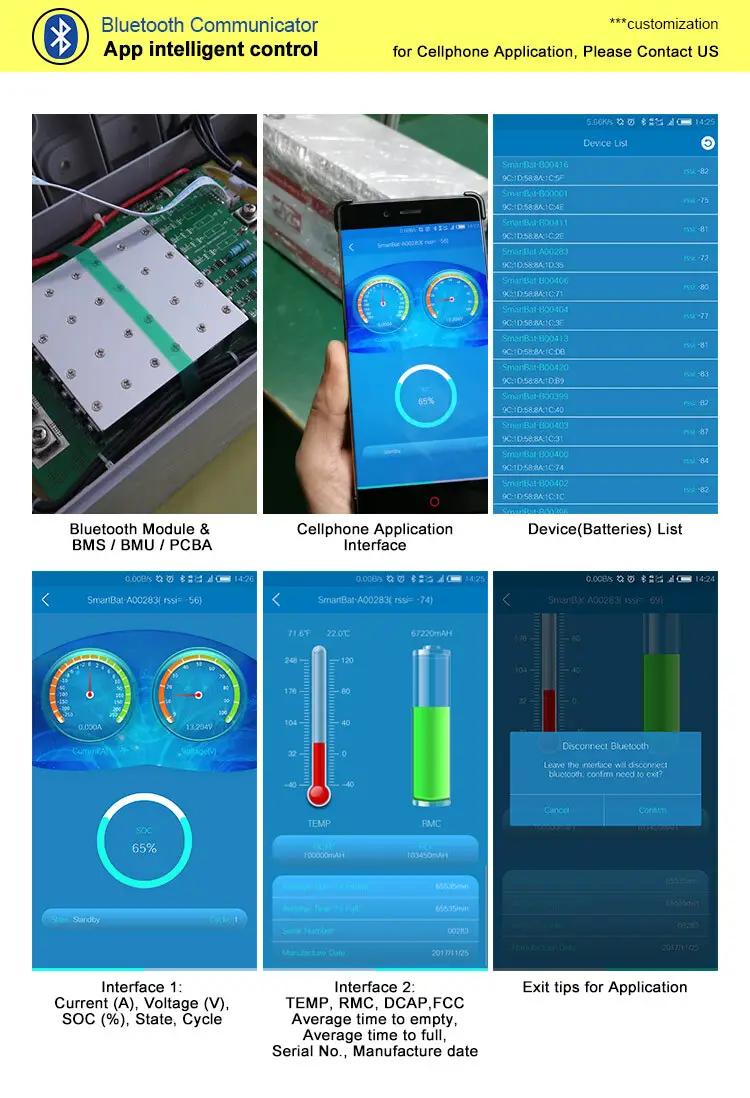

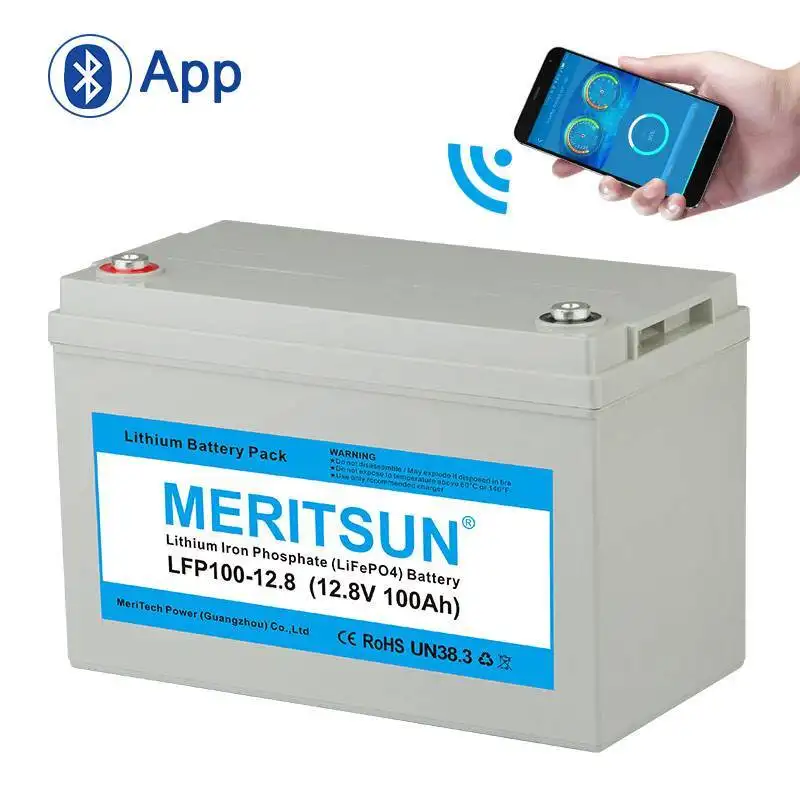

The OBM / OEM / ODM Service with regard to With LCD APP Bluetooth Control 12V 100Ah Deep Cycle LiFePO4 Lithium ion Polymer Battery Pack
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to With LCD APP Bluetooth Control 12V 100Ah Deep Cycle LiFePO4 Lithium ion Polymer Battery Pack
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to With LCD APP Bluetooth Control 12V 100Ah Deep Cycle LiFePO4 Lithium ion Polymer Battery Pack
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd.'s products have been available in Chinese market for more decades of years.
2. MeriTech Power Co.,Ltd. has highly qualified engineers, excellent sales and well-trained workers.
3. Adhering to integrity to work and customers can win the trust of customers and development of MERITSUN. Ask! Bearing the mission of lithium battery manufacturers keeps us passionate everyday. Ask!
