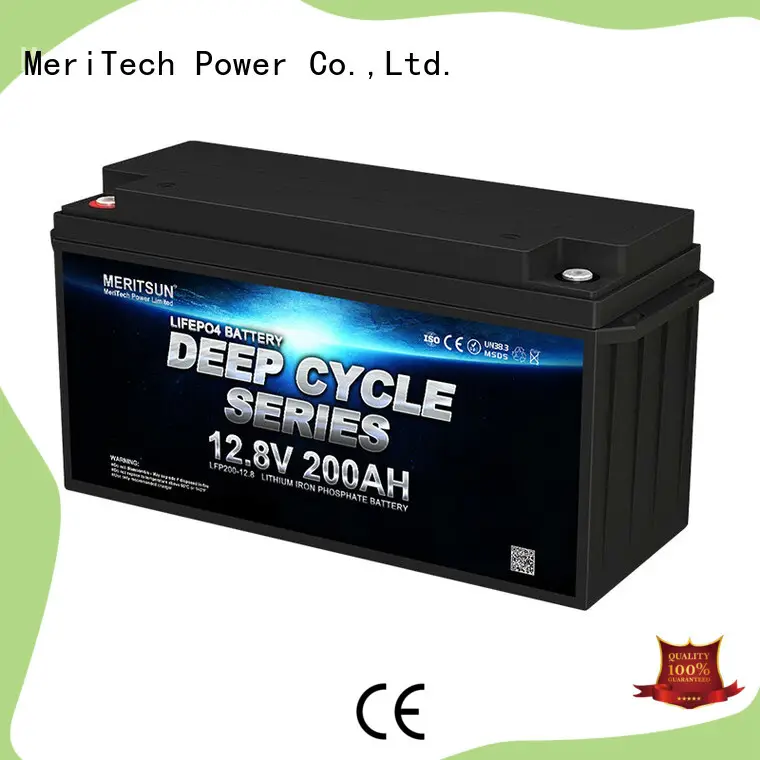

lightweight lithium iron phosphate battery customized for house
- With the service concept of 'customer first, service first', Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. constantly improves the service and strive to provide professional, high-quality and comprehensive services for customers.
1. MERITSUN lithium iron phosphate battery is produced based on various theories. It adopts the heat management theory to check and make sure the optimized working temperature for the battery cells.
2. A strict quality control system is to ensure the quality of the product.
3. Products must be inspected through our inspection system to ensure that quality meets industry requirements.
4. MERITSUN is also professional in its customer service.
5. By improving the customer service, our lithium iron phosphate battery has been more and more popular.
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤180mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 60A | |
Max. Charge Current | 80A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 60A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 8V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 4S20P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*170*245mm | |
Weight (lbs./kg.) | 25kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. As a developing company, MERITSUN has attracted more and more customers since founded.
2. We have invested the state-of-the-art production facilities. These machines are equipped with the latest production technologies and can help us reach the best results.
3. We work hard to achieve our sustainability practices. We consciously minimize the environmental impact during the entire life cycle of our products, including recycling and disposal. Innovation is our future. Through continuous technological advancement, we overcome the challenges of tomorrow: with a pioneering, specialized approach and a focus on development.
