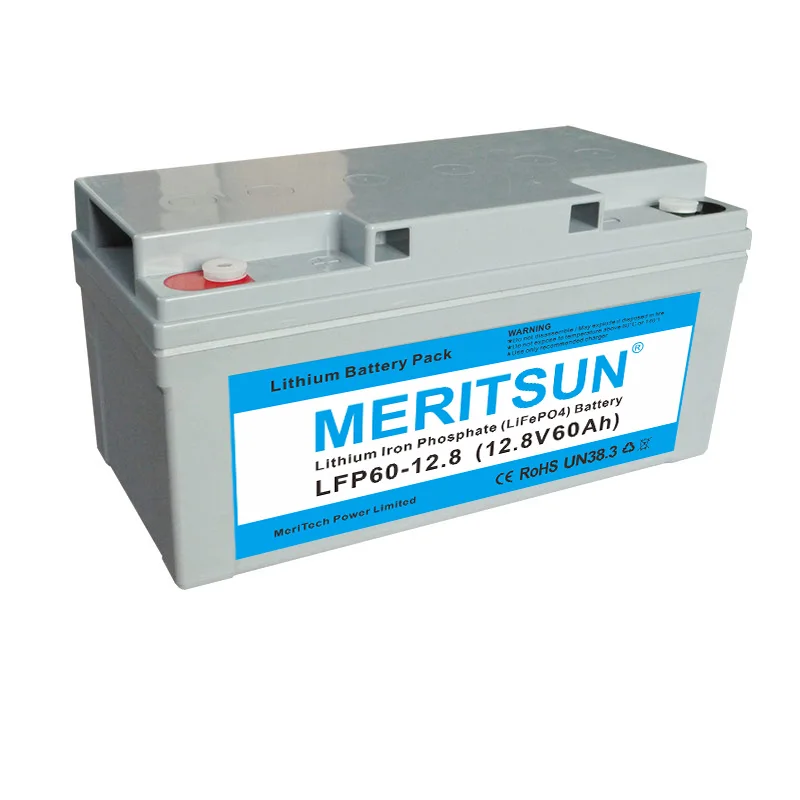

Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 1
Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 1

Lifepo4 Battery 12v 60ah Lithium Li-ion Battery

    oops...!

    no product data.

    Go to homepage
    Product Details
    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 2




    Electrica
    Characteristics
    Nominal Voltage
    12.8V
    Nominal Capacity
    60Ah
    125Ah
    768Wh
    Internal Resistance
    ≤30mΩ
    Cycle Life
    ≥2000 cycles @1C 100%DOD
    Months Self Discharge
    <3%
    Efficiency of Charge
    100% @0.5C
    Efficiency of Discharge
    96~99% @1C



    Standard Charge
    Charge Voltage
    14.6±0.2V
    Charge Mode
    0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
    Charger Current
    30A
    Max. Charge Current
    60A
    Charge Cut-off Voltage
    15.6V±0.2V

    Standard Discharge
    Continuous Current
    60A
    Max. Pulse Current
    70A(<10s)
    Discharge Cut-off Voltage
    8V


    Environmental
    Charge Temperature
    0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
    Discharge Temperature
    -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
    Storage Temperature
    0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
    Water Dust Resistance
    IP56




    Mechanical
    Cell & Method
    26650 4S36P
    Plastic Case
    ABS
    Dimensions (in./mm.)
    348*167*178*mm(Customized
    Weight (lbs./kg.)
    19kg
    Terminal
    T11
    Protocol (optional)
    SMBus/RS485/RS232
    SOC (optional)
    LED
    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 4
    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 6

    For more information, Please contact us now

    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    OEM&ODM

    The OBM / OEM / ODM Service with regard to lifepo4 battery 12v 60ah lithium li-ion battery

    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 8

    JYC&MERITSUN is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.

    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 10

    JYC&MeriTech Power Specialist will estimate your power needs, identify potential problem areas
    and recommend a cost-effective solution. What you'll get:
    1. The global optimum acquisition price for any required hardware
    2. Installation considerations

    3. Ongoing support options

    For more information, Please contact us now

    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Company Info

    The Company info with regard to lifepo4 battery 12v 60ah lithium li-ion battery

    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 12

    MERITSUN (JYC Battery Group) With a one of the largest battery manufacturing centers in China, finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of batteries.
    JYC&MERITSUN is a leading manufacturer and exporter of Battery.
    Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.
    JYC&MERITSUN 18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery, Lithium iron Phosphate Battery Production Advantages:
    ♦ Vertical industry chain brings outstanding cost advantages.
    ♦ Strict quality control system from raw material to production and finished goods, each process has at least one to inspect.
    ♦ Advanced Technology in assembling battery packs ensures each pack has precise conformance and a stable performance.
    ♦ Integrated and serial product to meet different customers' needs.
    ♦ Market-oriented research and develop ensure the upcoming products meet customer demands.

    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 14

    1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
    2. Cleaner production enterprise in China.
    3. OEM/ODM services backed by nearly 20 years' R&D experience.

    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 16


    For more information, Please contact us now.
    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Technology

    The Technology info with regard to lifepo4 battery 12v 60ah lithium li-ion battery

    The Factors of Quality Guarantee for 18650 Battery, Lithium Battery, Lipo Battery,
    Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery,
    Lithium iron Phosphate Battery
    (First-class quality management system, Professional technical form.)

    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 18

    JYC&MERITSUN Lithium Battery BMS / PCB / PCM.

    Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. JYC&MERITSUN test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.

    BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.

    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 20

    For more information, Please contact us now

    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Solutions

    The Applied Scope (Industry Solutions) with regard to lifepo4 battery 12v 60ah lithium li-ion battery

    JYC&MERITSUN has the proven solution.
    JYC&MERITSUN already provides security and stable to millions of users as a global.
    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 22

    > Wind-Solar Energy Storage system           > Solar street lights                          >Off-grid energy storage
    > Household energy storage                          > Telecom backup system              > Mobile base stations
    > Emergency backup energy sources           > Uninterruptible power system    > Grid load shifters
    > Electric Golf Car                                             > Electric vehicles                            > Electric motorcycles
    > Electric forklifts                                              > Electric boats, etc...

    For more information, Please contact us now
    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Packaging

    The Packaging with regard to lifepo4 battery 12v 60ah lithium li-ion battery

    Lifepo4 Battery 12v 60ah Lithium Li-ion Battery 24

    For more information, Please contact us now

    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Instruction & Note

    The Instruction / Note with regard to lifepo4 battery 12v 60ah lithium li-ion battery

    Battery Operation Instructions:
    1. Charge:Connecting the battery pack to the charge controller, connect the charger to recharge.
    2. Discharge:Connecting the battery pack to the load, connect the load to discharge.
    3. When you combine the battery with series or parallels, if there are oxidation layer on the surface, you
    Should brush surface to the metal glow with thin steel brush to lower the connective resistance to the minimal
    resistance.
    4. When combining with many batteries, if the voltage between the two electrodes is over 36V, the safe
    Voltage for human beings, to guarantee the safety, you should not touch the two electrodes with your body.
    Notes:
    1. Need for regular recharging (even if not use), must charge and discharge for three months one time.
    2. Do not expose the battery to extreme heat or flame.
    3. Do not short circuit, over-charge or over-discharge the battery pack.
    4. Do not disassemble or modify the battery pack.
    5. Do not handle or store with metallic like necklaces, coins or hairpins, etc.
    6. Do not reverse the polarity of the battery pack for any reason.
    7. Do not immerse the battery pack in water or sea water, or get it wet.
    8. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller.

    For more information, Please contact us now

    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Timely and thoughtful pre-sales and after-sales service is provided by MeriTech Power Co.,Ltd.. The product is designed with a protection circuit which can totally ensure the safety of users. MeriTech Power Co.,Ltd. can supply samples and accept the trial order with small quantity. The product is designed with a protection circuit which can totally ensure the safety of users.
