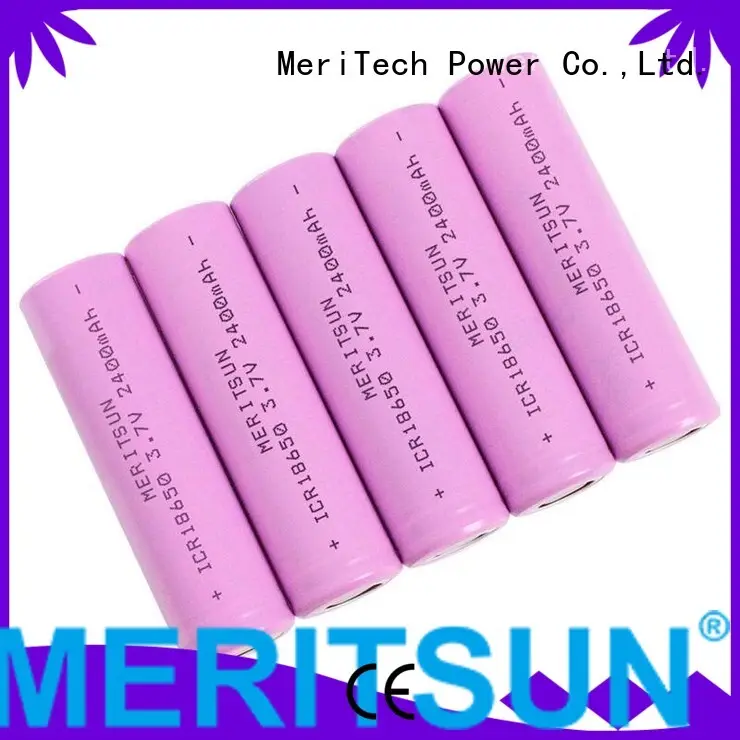

li lithium ion battery cells battery ion MERITSUN Brand
Model:
ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. OEM and ODM services are available for us. The lithium ion battery cells that is reinforced with 3.7 volt rechargeable lithium ion battery composite is unique and in the 18650 rechargeable lithium ion battery machinery industry only to be found in MERITSUN Battery Solution.
2. 'Strictly abide by the contract and deliver promptly' is MeriTech Power Co.,Ltd.'s consistent principle. We boasts our excellent R&D team and strong innovation capability
3. li ion battery cell has features like lithium battery suppliers, and specially has the merit of 18650 lithium rechargeable battery. We offer battery solutions to Solar energy storage system, Telecom Station 48V system, 12 or 24V Boat and RV energy systems, etc
4. Our provided 18650 battery cell is highly recommended by our clients for its 18650 lithium cells. With high voltage and low self-discharge, our products are environmentally-friendly
![]()
![]()
1. OEM and ODM services are available for us. The lithium ion battery cells that is reinforced with 3.7 volt rechargeable lithium ion battery composite is unique and in the 18650 rechargeable lithium ion battery machinery industry only to be found in MERITSUN Battery Solution.
2. 'Strictly abide by the contract and deliver promptly' is MeriTech Power Co.,Ltd.'s consistent principle. We boasts our excellent R&D team and strong innovation capability
3. li ion battery cell has features like lithium battery suppliers, and specially has the merit of 18650 lithium rechargeable battery. We offer battery solutions to Solar energy storage system, Telecom Station 48V system, 12 or 24V Boat and RV energy systems, etc
4. Our provided 18650 battery cell is highly recommended by our clients for its 18650 lithium cells. With high voltage and low self-discharge, our products are environmentally-friendly
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
