MERITSUN, the Best Lithium Energy Solution Provider.

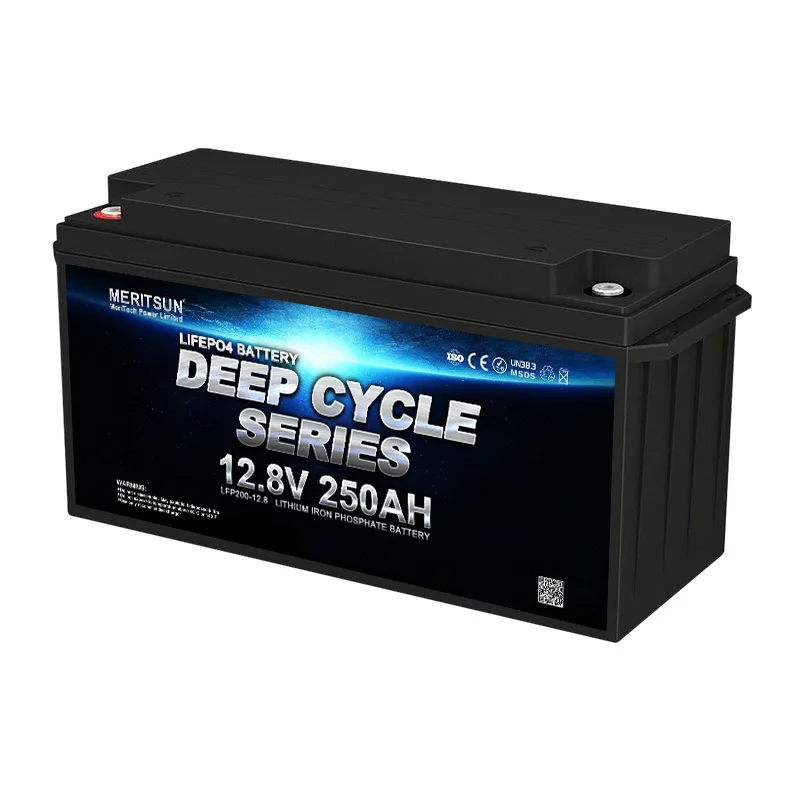

Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 1
Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 2
Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 1
Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 2

Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack

    oops...!

    no product data.

    Go to homepage
    Product Details
    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 3
    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 5




    Electrica
    Characteristics
    Nominal Voltage
    12.8V
    Nominal Capacity
    250Ah
    125Ah
    3200Wh
    Internal Resistance
    ≤30mΩ
    Cycle Life
    ≥4000 cycles @1C 100%DOD
    Months Self Discharge
    <3%
    Efficiency of Charge
    100% @0.5C
    Efficiency of Discharge
    96~99% @1C



    Standard Charge
    Charge Voltage
    14.6±0.2V
    Charge Mode
    0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
    Charger Current
    100A
    Max. Charge Current
    100A
    Charge Cut-off Voltage
    15.6V±0.2V

    Standard Discharge
    Continuous Current
    100A
    Max. Pulse Current
    200A(<10s)
    Discharge Cut-off Voltage
    10V


    Environmental
    Charge Temperature
    0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
    Discharge Temperature
    -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
    Storage Temperature
    0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
    Water Dust Resistance
    IP56




    Mechanical
    Cell & Method
    26650 4S36P
    Plastic Case
    ABS
    Dimensions (in./mm.)
    522*268*226mm
    Customized
    Weight (lbs./kg.)
    27kg (29.983 lbs)
    Terminal
    T11
    Protocol (optional)
    SMBus/RS485/RS232
    SOC (optional)
    LED
    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 7
    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 9

    For more information, Please contact us now

    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Company Info

    The Company info with regard to Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack

    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 11

    MERITSUN (JYC Battery Group) With a one of the largest battery manufacturing centers in China, finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of batteries.
    JYC&MERITSUN is a leading manufacturer and exporter of Battery.
    Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.
    JYC&MERITSUN 18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery, Lithium iron Phosphate Battery Production Advantages:
    ♦ Vertical industry chain brings outstanding cost advantages.
    ♦ Strict quality control system from raw material to production and finished goods, each process has at least one to inspect.
    ♦ Advanced Technology in assembling battery packs ensures each pack has precise conformance and a stable performance.
    ♦ Integrated and serial product to meet different customers' needs.
    ♦ Market-oriented research and develop ensure the upcoming products meet customer demands.

    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 13

    Readmore....

    1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
    2. Cleaner production enterprise in China.
    3. OEM/ODM services backed by nearly 20 years' R&D experience.

    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 15

    Readmore...


    For more information, Please contact us now.
    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Technology

    The Technology info with regard to Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack

    The Factors of Quality Guarantee for 18650 Battery, Lithium Battery, Lipo Battery,
    Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery, Lithium Polymer Battery,
    Lithium iron Phosphate Battery
    (First-class quality management system, Professional technical form.)

    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 17

    JYC&MERITSUN Lithium Battery BMS / PCB / PCM.

    Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. JYC&MERITSUN test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.

    BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.

    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 19

    For more information, Please contact us now

    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Solutions

    The Applied Scope (Industry Solutions) with regard to Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack

    JYC&MERITSUN has the proven solution.
    JYC&MERITSUN already provides security and stable to millions of users as a global.
    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 21

    Readmore...

    > Wind-Solar Energy Storage system           > Solar street lights                          >Off-grid energy storage
    > Household energy storage                          > Telecom backup system              > Mobile base stations
    > Emergency backup energy sources           > Uninterruptible power system    > Grid load shifters
    > Electric Golf Car                                             > Electric vehicles                            > Electric motorcycles
    > Electric forklifts                                              > Electric boats, etc...

    For more information, Please contact us now
    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    Packaging

    The Packaging with regard to Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack

    Li-ion Lithium Battery 12v 250ah Lifepo4 Battery Pack 23

    For more information, Please contact us now

    You will get the best design solution for FREE !!!
    ( Just click here , or click on the customer service on the right side)
    MeriTech Power Co.,Ltd. adheres to the business philosophy of 'rigorous, diligent and innovative' to serve the customers. The product with a long service life can be used for more than 8 years. The customer service of battery solutions has been highly recognized by customers. The product with a long service life can be used for more than 8 years.
