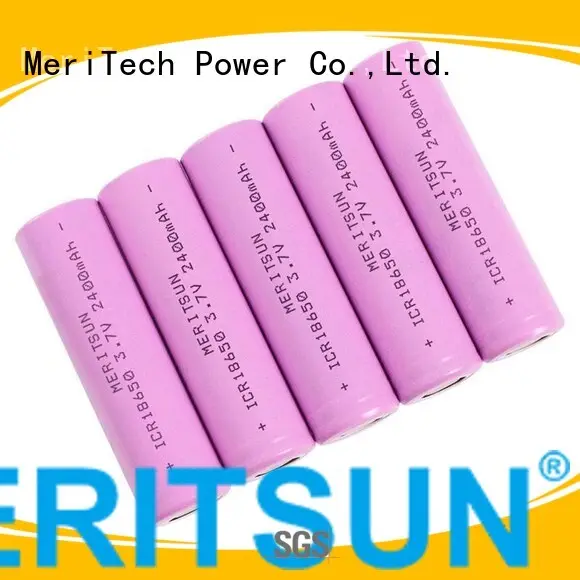

li icr lipo li ion battery cell MERITSUN
1. It is produced in strict accordance with the UL standard. For the fabrication of these products, MERITSUN professionals make use of high grade raw material and cutting-edge technology in complete compliance with international quality standards.
2. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity. li ion battery cell,lithium ion battery cells serves many famous brand.
3. It is of extremely low self-discharge rate and can be left unused for a longer time. 18650 battery cell,3.7 volt rechargeable lithium ion battery is mostly used in high drain battery,18650 rechargeable lithium ion battery industry, and also in lithium battery suppliers.
4. If you are not sure about quality, we can send free samples of 18650 high drain battery. It can be used within a wider temperature range from -20℃ to 65℃
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
