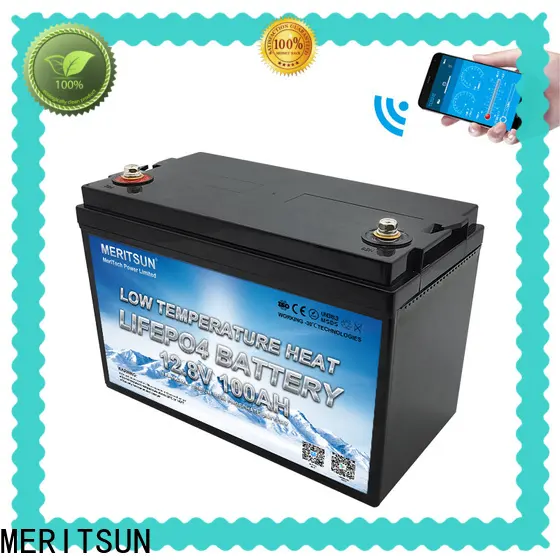

latest lithium battery low temperature factory for robot
Model:
LFP200-12.8, Bluetooth Battery
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Video Display
1. The unique function of lithium battery low temperature is well received by the customers. It can be widely applied in diverse areas ranging from small appliances and IT devices
2. MeriTech Power Co.,Ltd. initiates the overseas production bases for lithium battery low temperature . The product is produced under the principle of environmental protection
3. The most important characteristics of this product include softness, durability and health benefits. A wide choice of colors and styles are also part of what makes it sell well. It is packed with high-quality and sturdy packages
4. The product illuminates in a specific direction. It does not require an additional reflection or reorientation system to prevent light loss. Made of reliable chemical substances, the product is of superior safety
5. This product is highly durable in use, and is resistant to stains and fading. Even after many years of using, it will still look brand new. The weight of the product is about 40% of the weight of a comparable lead-acid battery
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 100Ah | |||||
| Energy | 1280Wh | |||||
| Internal Resistance | ≤150mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 15.6V±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | IP56 | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 335*170*210mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | ||||||
Company Features
1. Our strong R&D team has ensured advanced and practical technology of the company's products.
2. We have implemented effective sustainable business initiatives that are both strategic and profitable to businesses. We make plans in reducing packaging materials, cutting energy consumption, and legally handle wastes.
