latest icr 18650 battery with good price for electric vehicles
Model:

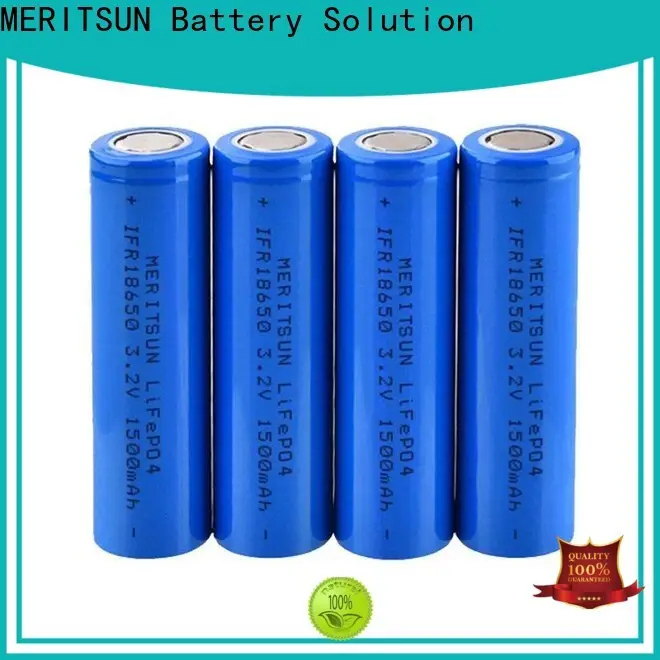

IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
